Note: Ships in 1-2 business days. Delivery time depends on the shipping method chosen at checkout.

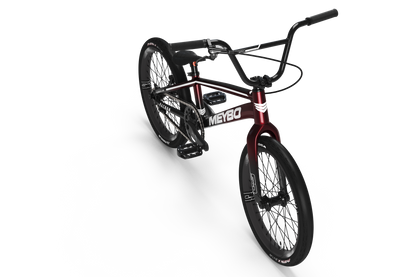

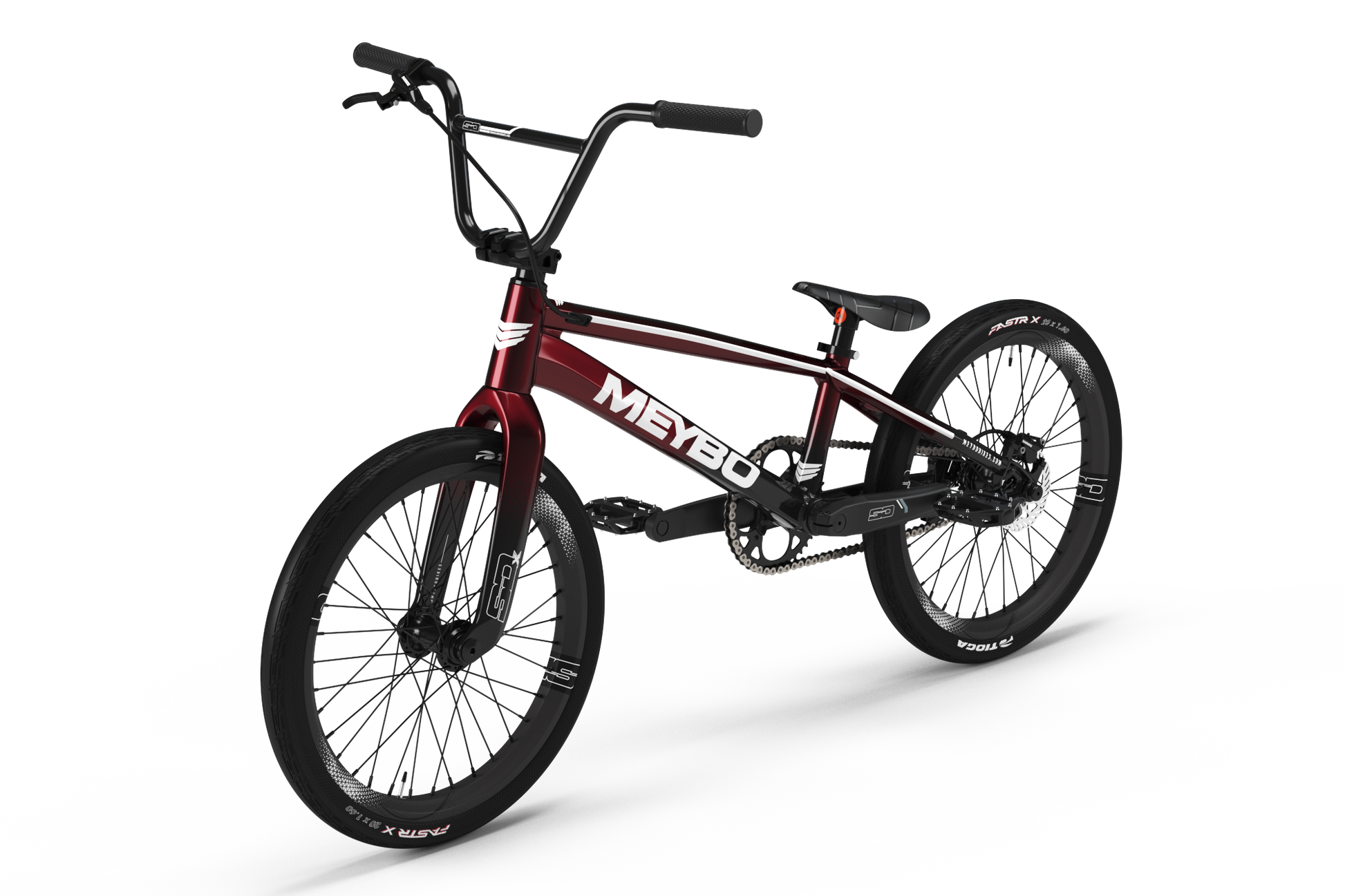

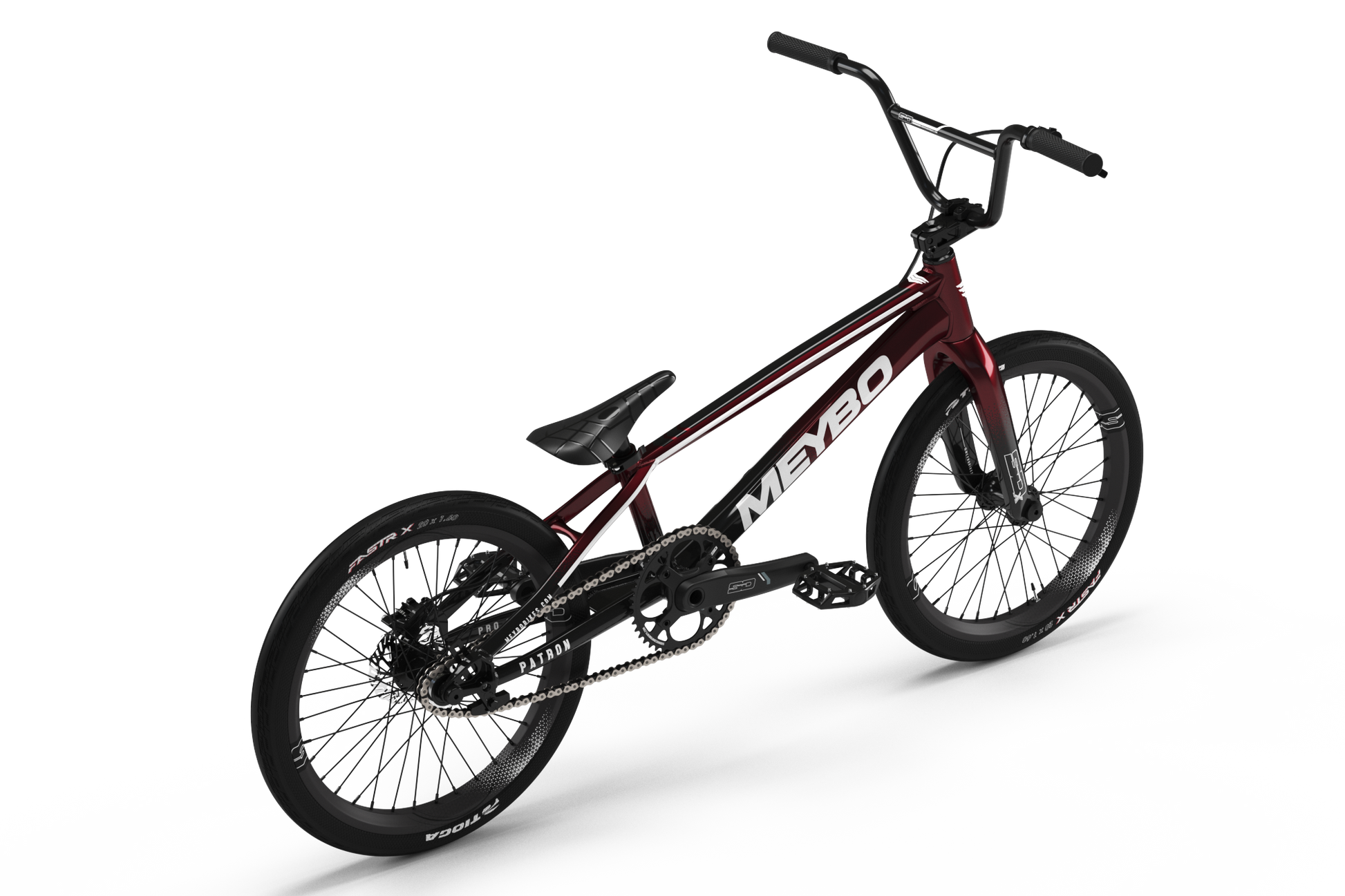

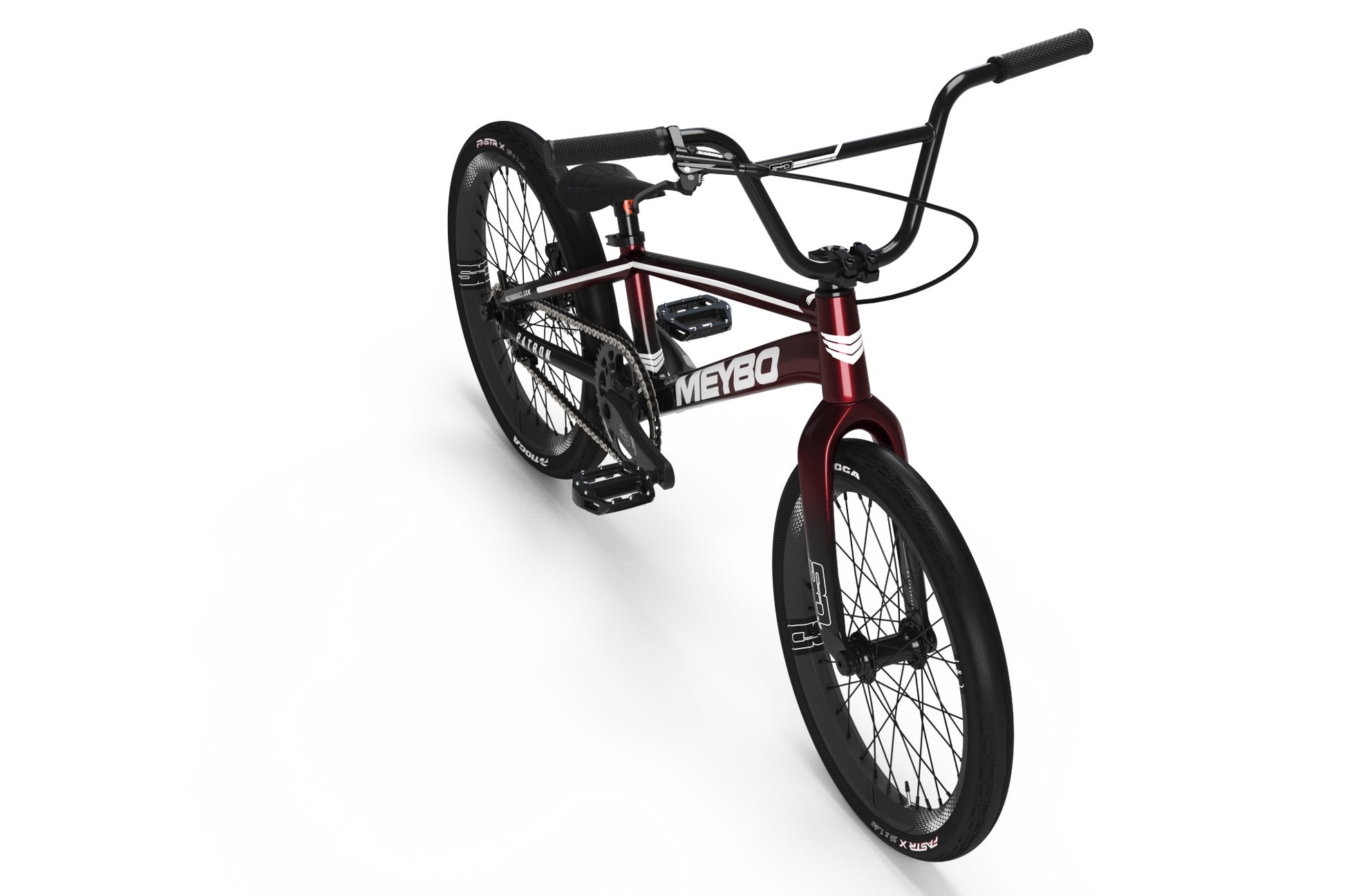

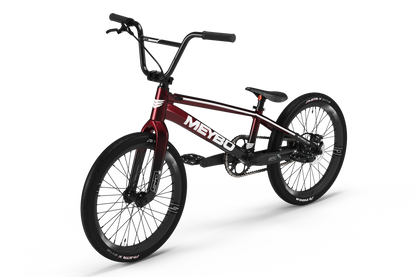

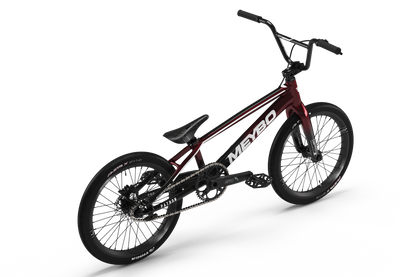

The Meybo Patron in Red/Black/White is a high-end, World Cup-ready race bike loaded with the gear serious racers demand. Built on the Meybo HSX Patron 6061 alloy frame with a carbon fork and SD M58 V2 carbon rims, it delivers the stiffness and low rotating weight needed for explosive starts. Shimano MT501 hydraulic disc braking and SD Ace Pro hubs round out a podium-ready package.
Features:
- Frame: Meybo HSX Patron Frame Alloy 6061 Pro 22.5
- Fork: SD Pro Tapered 1.5 Carbon Fork V2 CNC steerer 20" with 20MM dropouts
- Headset: FSA Sealed Full Integrated Tapered Headset
- Handlebar: SD cr-mo 7,5" pro Handlebar
- Stem: SD CNC Stem 1 1/8" 50mm
- Grips: SD 130 mm lock on grips
- Brake Lever: Shimano MT501 Hydraulic Lever
- Caliper: Shimano MT501 Hydraulic Caliper
- Front Hub: SD Ace Pro Hub 36H 20mm through axle
- Rear Hub: Sd Ace Pro Cassette HSX Hub 15Mm Through Axle 36H Sealed Bearing 180 Clicks
- Spokes: Spokes Black
- Nipples: Nipples Alloy Black
- Front Rim: SD M58 V2 20x 1.75 Carbon Rim 25mm
- Rear Rim: SD M58 V2 20x 1.75 Carbon Rim 25mm
- Front Tire: Tioga Fastr-X 20x 1.60 Wired
- Rear Tire: Tioga Fastr-X 20x 1.60 Wired
- Seat: Box Two pro seat 27,2 black
- Seat Clamp: SD qr clamb 31,8 black
- Crankset: SD Pro Hollow crankset 4hole, outboard bearings 170mm
- Bottom Bracket: SD Bottom Bracket Bb30 Conversion To 24Mm Spindle
- Pedals: Wellgo LU-313 platform
- Front Sprocket: SD CNC 6061 Chainring V2 4 Hole 43T Black
- Rear Sprocket: Cog 16T
- Chainring Bolts: Black Steel
- Chain: KMC Z1eHX 3/32 Silver
- Chaintensioners: Meybo HSX Chain Tensioner Black

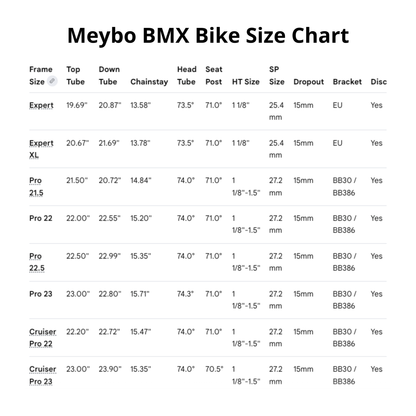

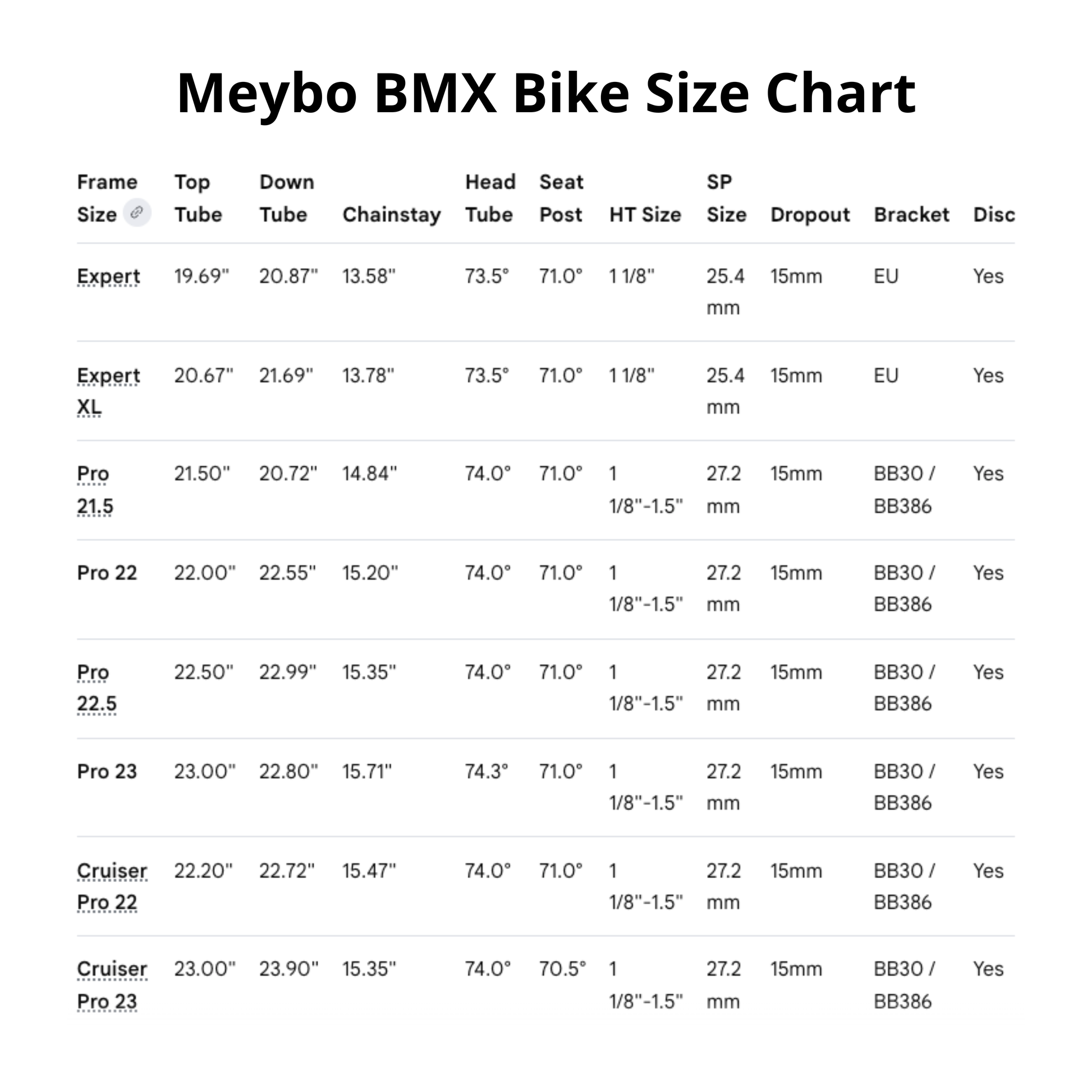

- Top Tube Rider Area: 22,5"
- Down Tube: 22,99"
- Chainstay: 15,35"
- Head Tube Angle: 74,0
- Seat Post Angle: 71,0
- Head Tube Size Full Integrated: 1 1/8" - 1.5"
- Seat Post Size: 27,2 mm
- Dropout: 15mm
- Bracket: BB30
- Disc Brake Only: Yes
- Color: Red/Black/White
