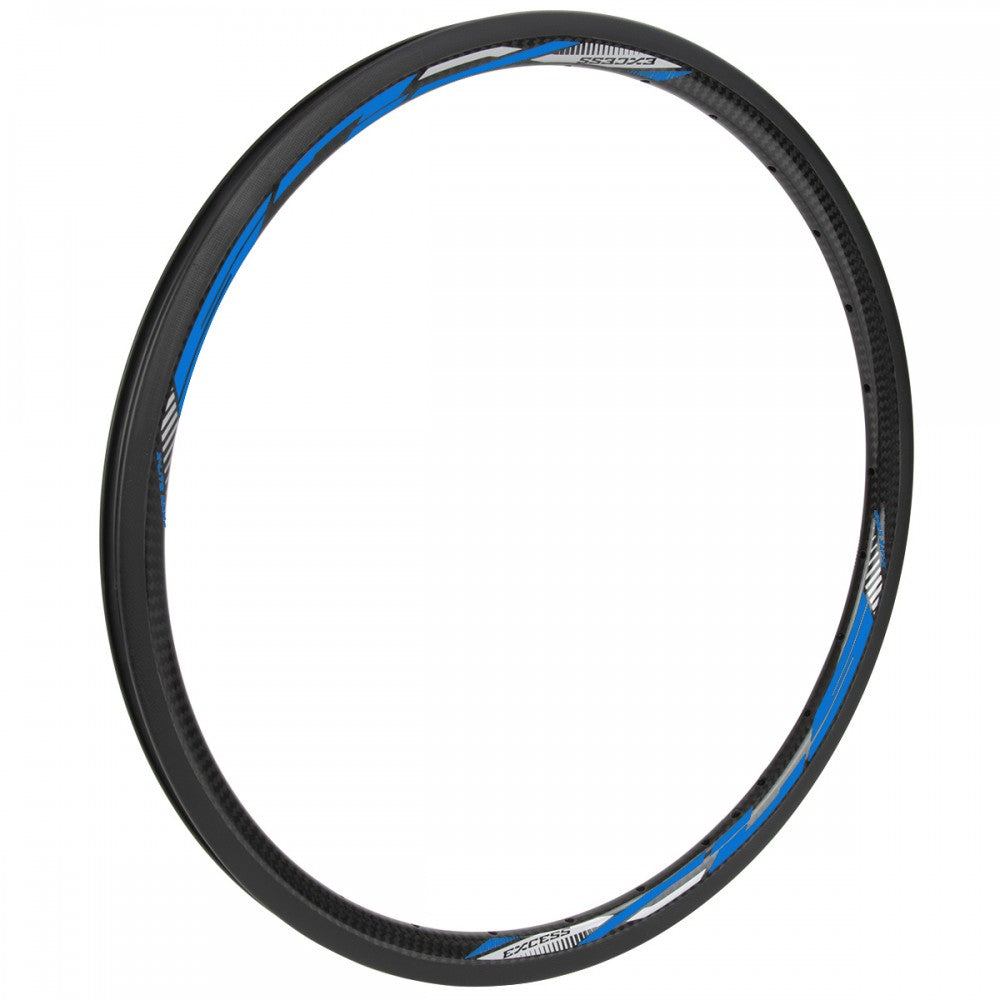

Excess XLS Carbon Rim 451x21mm 28H with Brake Surface
Excess XLS Carbon Rim 451x21mm 28H with Brake Surface
30 Day Returns — Buy with Confidence. Return unused items within 30 days of delivery.
Note: Ships in 4-5 business days. Delivery time depends on the shipping method chosen at checkout. The 451 race rim in carbon, in the version built with braking sidewalls for V-brake use. If you are running rim brakes, this is the one you need — the brakeless version has no surface for the pads to grip. Excess build it from a 3K weave with an undercoat finish, which combines strength, rigidity... read more
Note: Ships in 4-5 business days. Delivery time depends on the shipping method chosen at checkout.
The 451 race rim in carbon, in the version built with braking sidewalls for V-brake use. If you are running rim brakes, this is the one you need — the brakeless version has no surface for the pads to grip.
Excess build it from a 3K weave with an undercoat finish, which combines strength, rigidity and light weight in a way alloy cannot match at 289 g. The payoff on track is lateral stiffness: the wheel resists twisting under you in a rutted turn, so the bike goes where you point it. Angled nipple holes let each spoke enter the rim at a straighter angle, building a more rigid wheel that stays true longer.
One important point: carbon rims need dedicated carbon-specific brake pads. Standard pads will damage the rim.
Features:
- 3K carbon rim with high-gloss finish
- Rear profile with braking surface sidewalls, V-brake compatible
- V-brake compatible with special pads for carbon rims only
- Dimensions: 451 x 22 mm (20 x 1-1/8" / 1-3/8")
- Drilling: 28 holes
- Valve: Presta
- Weight: 289 g
- ERD: 423.4 mm
- Height: 23.3 mm
- Internal rim width: 16 mm
- External rim width: 22 mm
- Recommended maximum tire pressure: 110 psi / 7.58 bar
- Recommended spoke tension: under 115 kgf
- Tubeless ready with Bead Lock System, additional tubeless items required
