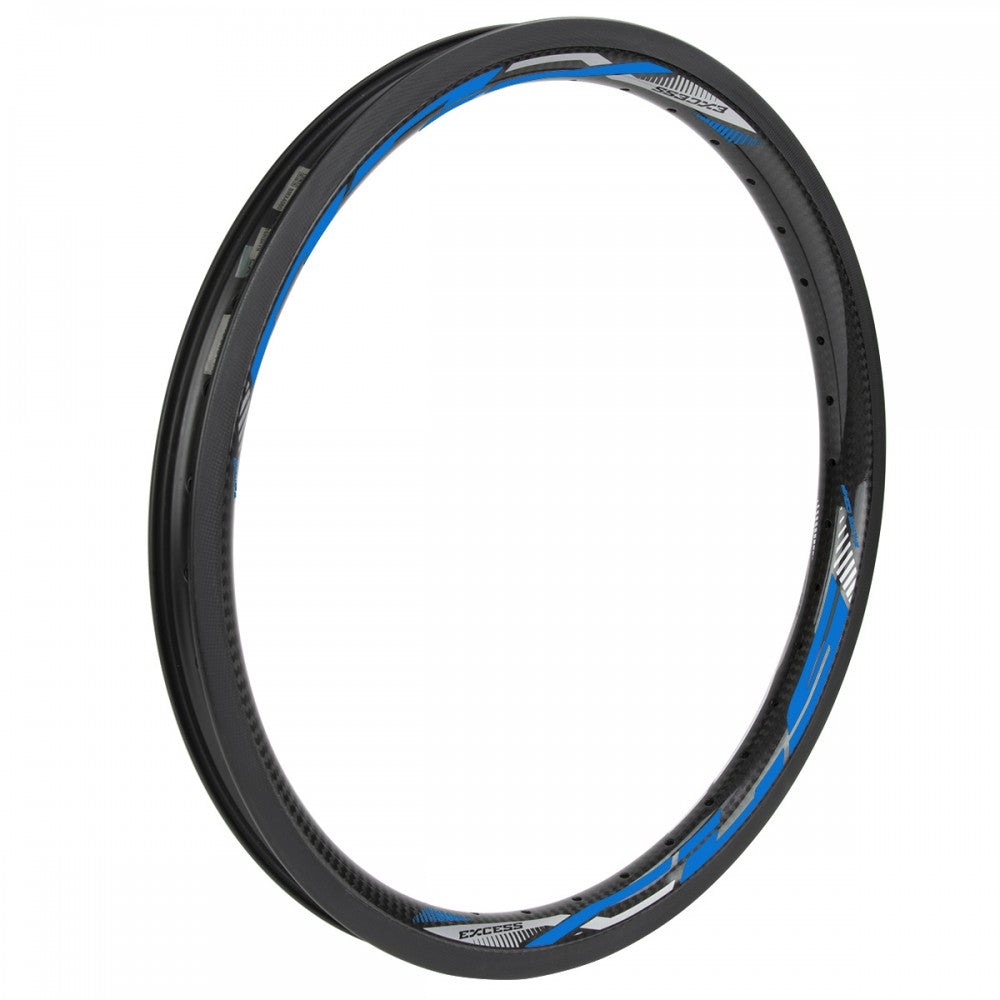

Excess XLS Carbon Rim 406x32mm 36H with Brake Surface
Excess XLS Carbon Rim 406x32mm 36H with Brake Surface
30 Day Returns — Buy with Confidence. Return unused items within 30 days of delivery.
Note: Ships in 4-5 business days. Delivery time depends on the shipping method chosen at checkout. The same wide 406 x 32 mm carbon rim, built this time with a brake track so it can be used with V-brakes. If your bike still runs rim brakes at the back, this is the version you need — the brakeless one has no surface for the pads. The 25 mm internal width supports a 1.50 or 1.75 inch tire with a... read more
Note: Ships in 4-5 business days. Delivery time depends on the shipping method chosen at checkout.
The same wide 406 x 32 mm carbon rim, built this time with a brake track so it can be used with V-brakes. If your bike still runs rim brakes at the back, this is the version you need — the brakeless one has no surface for the pads.
The 25 mm internal width supports a 1.50 or 1.75 inch tire with a rounder profile, so the tire holds its shape through a turn and you can run a little less pressure for grip. The 3K weave keeps it stiff at 318 g, and angled nipple holes let the spokes enter the rim straighter for a wheel that stays true. It is tubeless ready through the Bead Lock System.
One important point: carbon rims need brake pads made specifically for carbon. Standard pads will damage the rim.
Features:
- 3K carbon rim with water stickers and shiny clear coating finish
- Low profile aero brake track surface profile
- V-brake compatible, designed as a rear rim
- V-brake compatible with special pads for carbon rims only
- Dimensions: 406 x 32 mm (20 x 1.50" / 20 x 1.75")
- Drilling: 36 holes
- Angled nipple holes
- Presta valve hole
- Weight: 318 g
- ERD: 377.4 mm
- Height: 25 mm
- Internal rim width: 25 mm
- External rim width: 32 mm
- Recommended spoke tension: under 115 kgf
- Tubeless ready with Bead Lock System, additional tubeless items required
