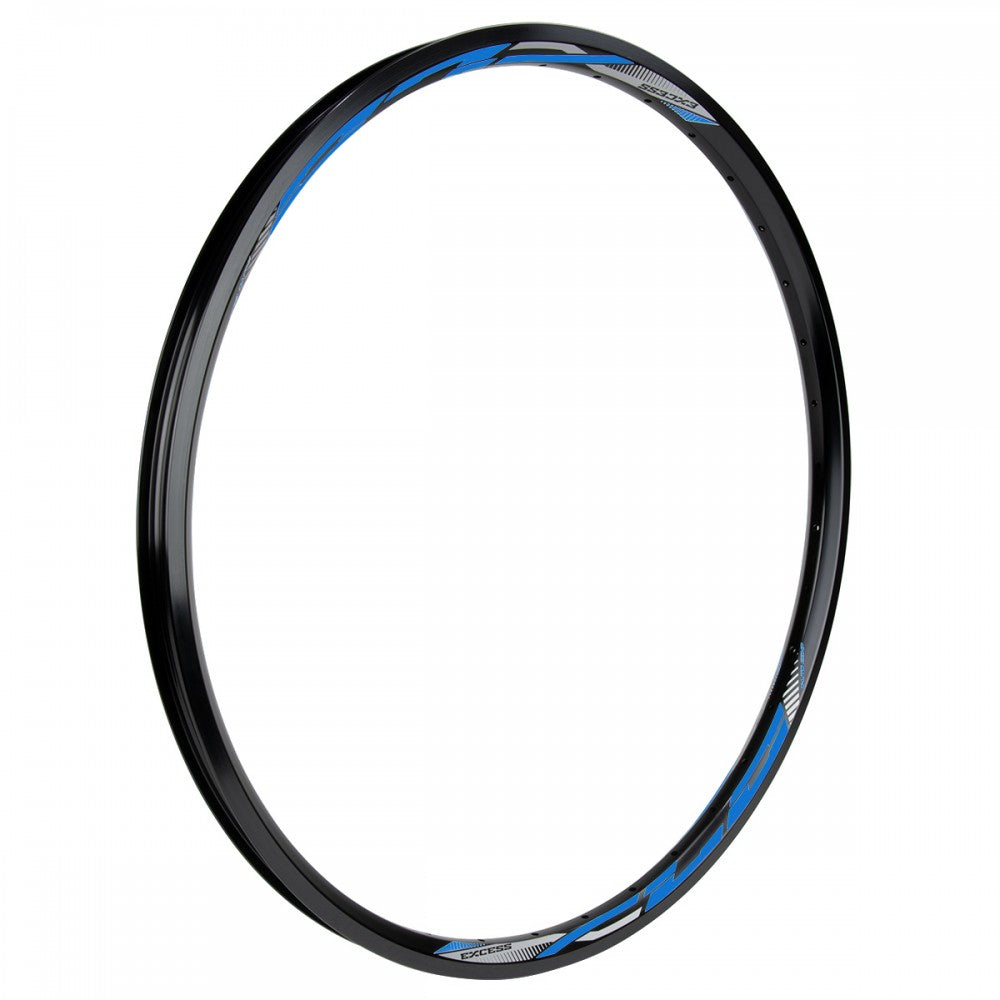

Excess XLS Alloy Rim 507x28mm 36H with Brake Surface
Excess XLS Alloy Rim 507x28mm 36H with Brake Surface
30 Day Returns — Buy with Confidence. Return unused items within 30 days of delivery.
Note: Ships in 4-5 business days. Delivery time depends on the shipping method chosen at checkout. The 24 inch alloy cruiser rim in the V-brake version, with a machined brake track built into the sidewall. If your cruiser still runs a rim brake at the back, this is the profile you need — the brakeless version has no surface for the pads. Machining the track flat is what gives consistent, predi... read more
Note: Ships in 4-5 business days. Delivery time depends on the shipping method chosen at checkout.
The 24 inch alloy cruiser rim in the V-brake version, with a machined brake track built into the sidewall. If your cruiser still runs a rim brake at the back, this is the profile you need — the brakeless version has no surface for the pads.
Machining the track flat is what gives consistent, predictable braking from the first squeeze rather than the grabby feel of a raw extruded sidewall, and it matters more on a cruiser, which carries more speed into the turns. Double walled 6061 T6 with optimized internal geometry holds it to 388 g, the 23.3 mm internal width supports a 1.50 or 1.75 inch tire properly, and it is tubeless ready through the Bead Lock System.
Features:
- Double walled 6061 T6 alloy rim with optimized internal geometry for light weight and strength
- Low profile aero with machined brake track on brake surface
- V-brake compatible, designed as a rear rim
- Dimensions: 507 x 28 mm (24 x 1.50" / 24 x 1.75")
- Drilling: 36 holes
- Angled nipple holes
- Presta valve hole
- Single process hi-polished, black anodized finish
- Weight: 388 g
- ERD: 491 mm
- Height: 19 mm
- Internal rim width: 23.3 mm
- External rim width: 28 mm
- Recommended spoke tension: under 115 kgf
- Tubeless ready with Bead Lock System, additional tubeless items required
