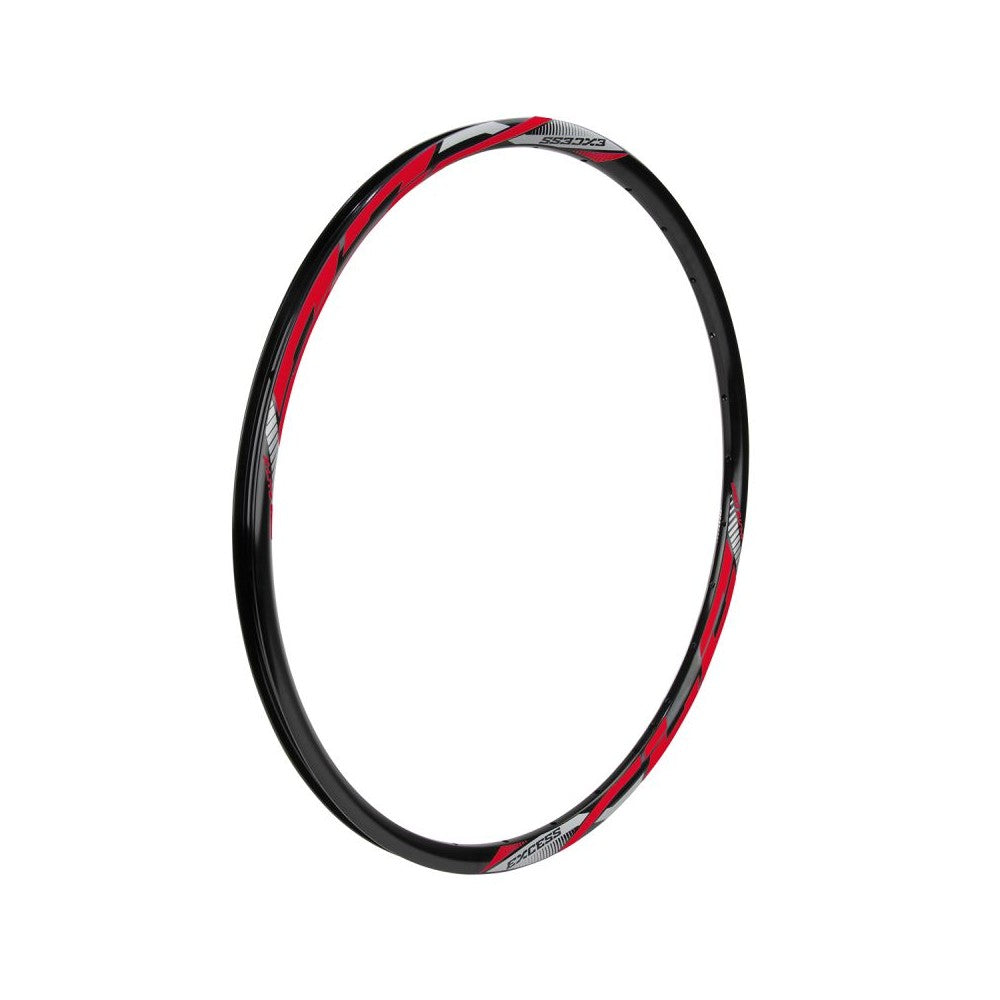

Excess XLS Alloy Rim 451x19.5mm 28H No Brake Surface
Excess XLS Alloy Rim 451x19.5mm 28H No Brake Surface
30 Day Returns — Buy with Confidence. Return unused items within 30 days of delivery.
Note: Ships in 4-5 business days. Delivery time depends on the shipping method chosen at checkout. A light, honest alloy race rim for Mini and Expert class 451 wheels, in the brakeless profile for disc brake bikes. Twenty-eight holes keeps the spoke count down where the rider does not weigh much, which is exactly where you want to save weight on a small bike. It is double walled 6061 T6 alumin... read more
Note: Ships in 4-5 business days. Delivery time depends on the shipping method chosen at checkout.
A light, honest alloy race rim for Mini and Expert class 451 wheels, in the brakeless profile for disc brake bikes. Twenty-eight holes keeps the spoke count down where the rider does not weigh much, which is exactly where you want to save weight on a small bike.
It is double walled 6061 T6 aluminum with the internal geometry hollowed out where the strength is not needed, so it lands at 264 g without giving up stiffness. Angled nipple holes let each spoke enter the rim at a straighter angle, which builds a more rigid wheel that stays true through a season of gate starts. The black anodized finish is single-process polished, so it looks right on a race bike and does not chip like paint.
Features:
- Double walled 6061 T6 alloy rim with optimized internal geometry for light weight and strength
- Low profile aero brakeless surface profile
- Disc braking compatible, front or rear
- Dimensions: 451 x 19.5 mm (20 x 1-1/8" / 20 x 1-3/8")
- Drilling: 28 holes
- Angled nipple holes
- Presta valve hole
- Single process polished, black anodized finish
- Weight: 264 g
- ERD: 438 mm
- Height: 16 mm
- Internal rim width: 13.5 mm
- External rim width: 19.5 mm
- Recommended spoke tension: under 115 kgf
