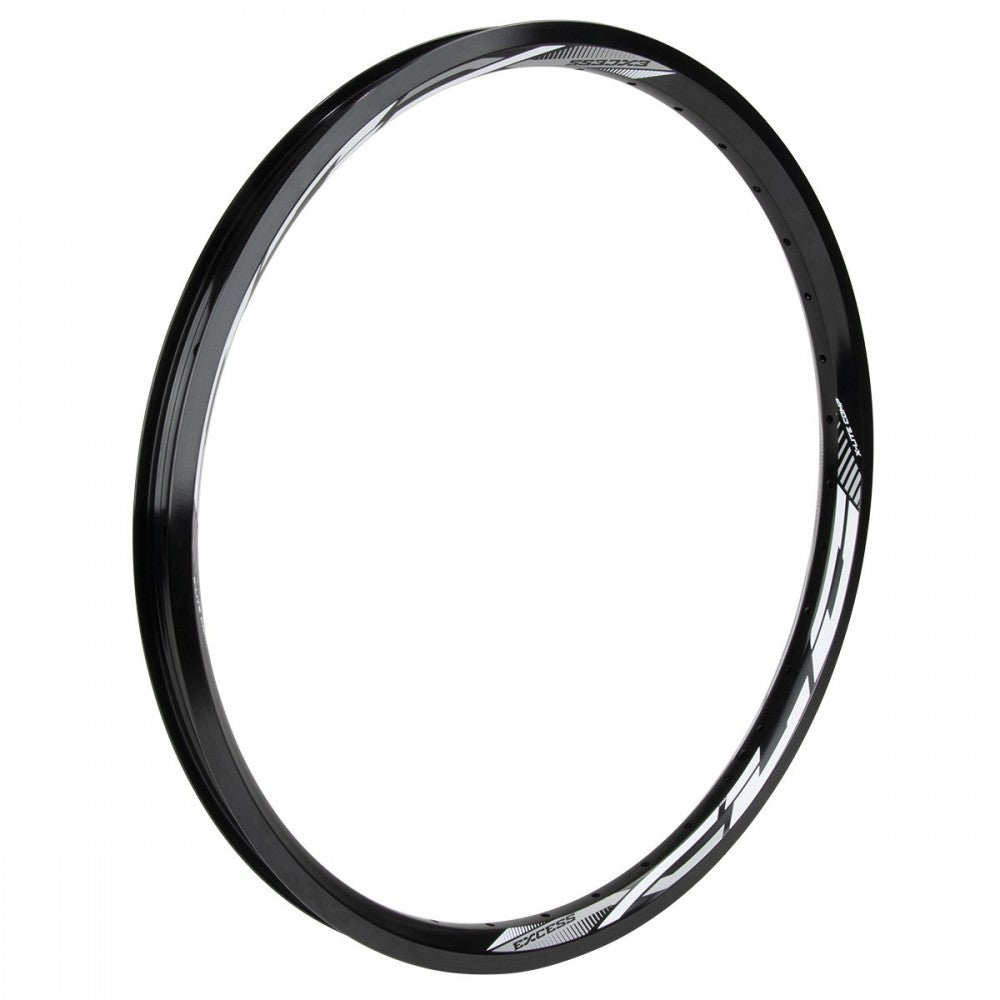

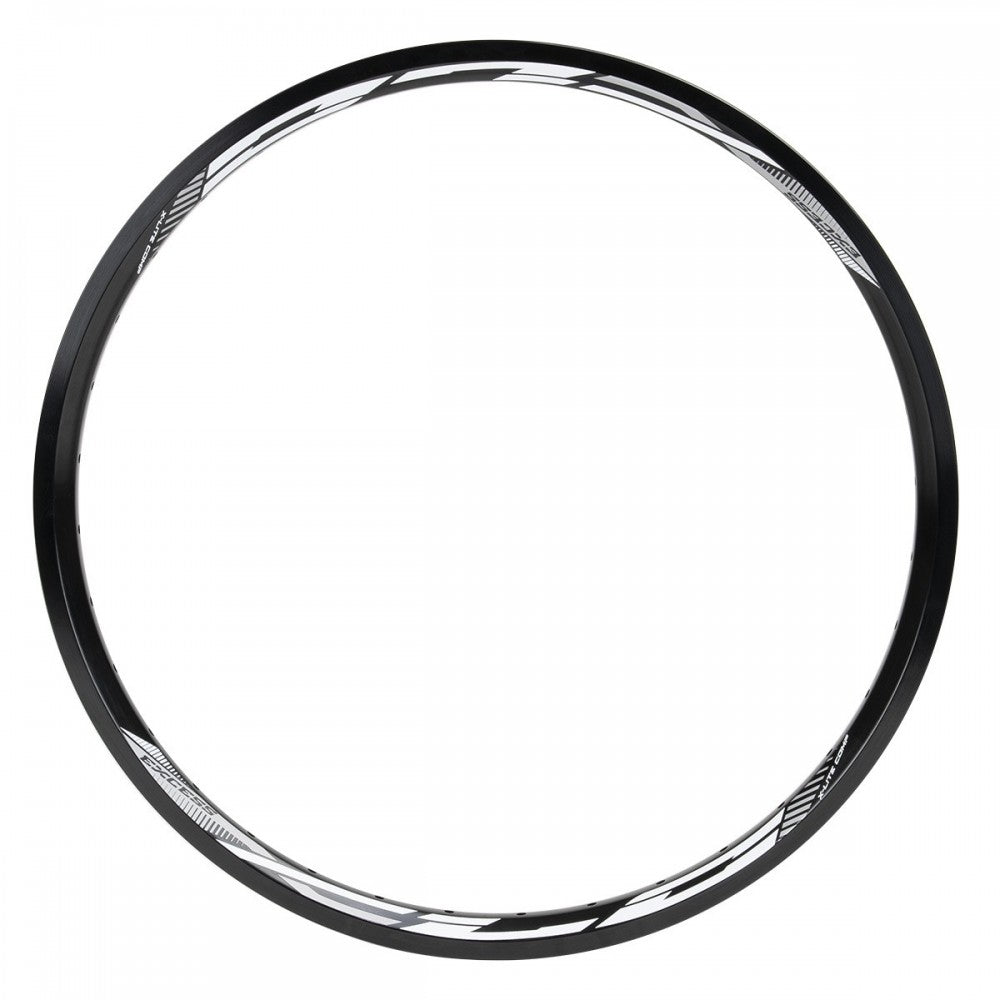

Excess XLS Alloy Rim 406x28mm 36H with Brake Surface
Excess XLS Alloy Rim 406x28mm 36H with Brake Surface
30 Day Returns — Buy with Confidence. Return unused items within 30 days of delivery.
Note: Ships in 4-5 business days. Delivery time depends on the shipping method chosen at checkout. The wide 20 inch Pro Lite and Pro class alloy rim, built with a machined brake track for V-brakes. If the bike runs a rim brake at the back, this is the version to order — the brakeless one gives the pads nothing to grip. At 28 mm external and 23.3 mm internal there is real width here, which lets... read more
Note: Ships in 4-5 business days. Delivery time depends on the shipping method chosen at checkout.
The wide 20 inch Pro Lite and Pro class alloy rim, built with a machined brake track for V-brakes. If the bike runs a rim brake at the back, this is the version to order — the brakeless one gives the pads nothing to grip.
At 28 mm external and 23.3 mm internal there is real width here, which lets a 1.50 or 1.75 inch tire sit with a rounder, better supported profile. The tire holds its shape through a turn rather than folding, and you can run a few psi less for grip without inviting a pinch flat. Double walled 6061 T6 with optimized internal geometry keeps it to 314 g, and the machined brake track gives predictable stopping from the first squeeze. Tubeless ready through the Bead Lock System.
Features:
- Double walled 6061 T6 alloy rim with optimized internal geometry for light weight and strength
- Low profile aero with machined brake track on brake surface
- V-brake compatible, designed as a rear rim
- Dimensions: 406 x 28 mm (20 x 1.50" / 20 x 1.75")
- Drilling: 36 holes
- Angled nipple holes
- Presta valve hole
- Single process hi-polished, black anodized finish
- Weight: 314 g
- ERD: 388 mm
- Height: 19 mm
- Internal rim width: 23.3 mm
- External rim width: 28 mm
- Recommended spoke tension: under 115 kgf
- Tubeless ready with Bead Lock System, additional tubeless items required
