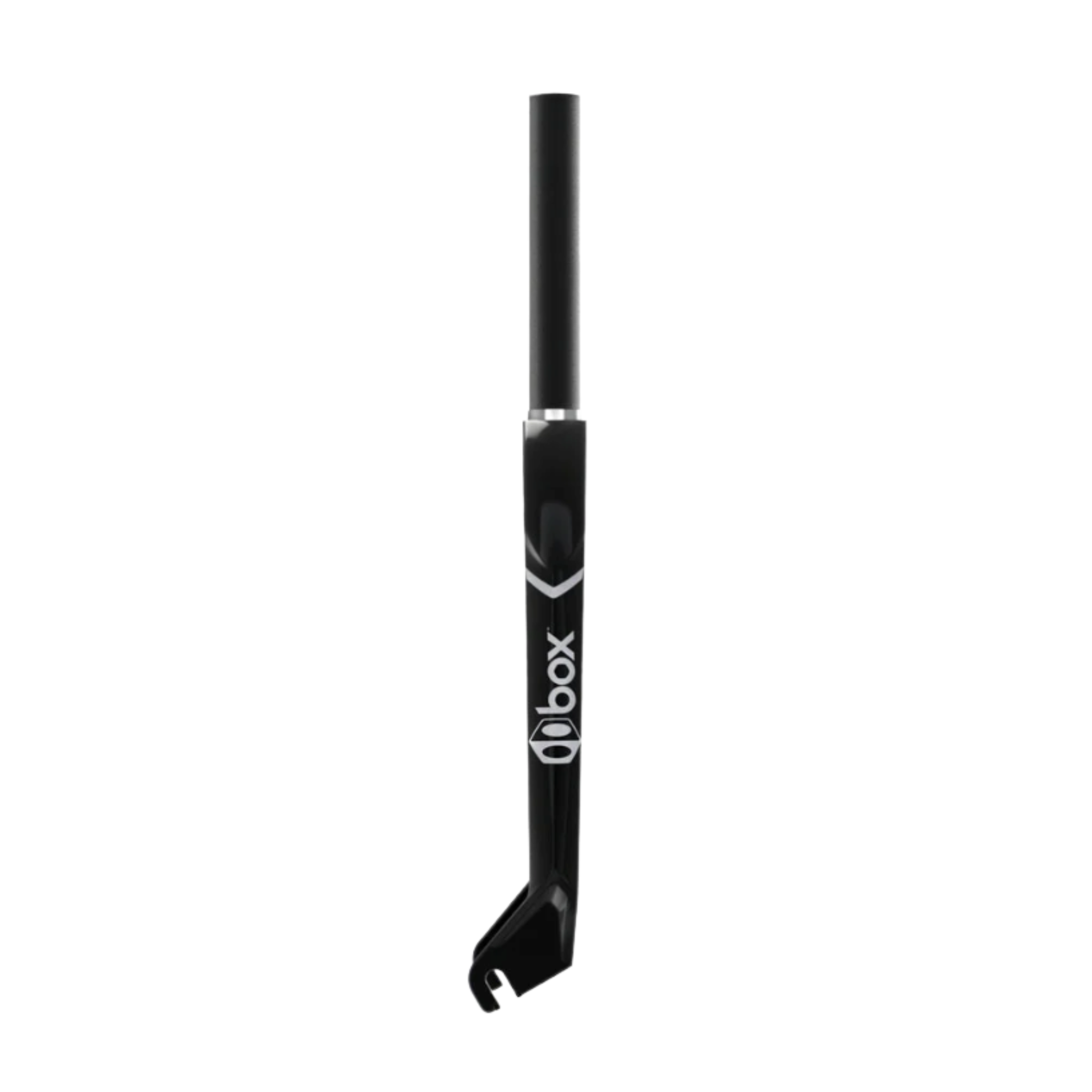

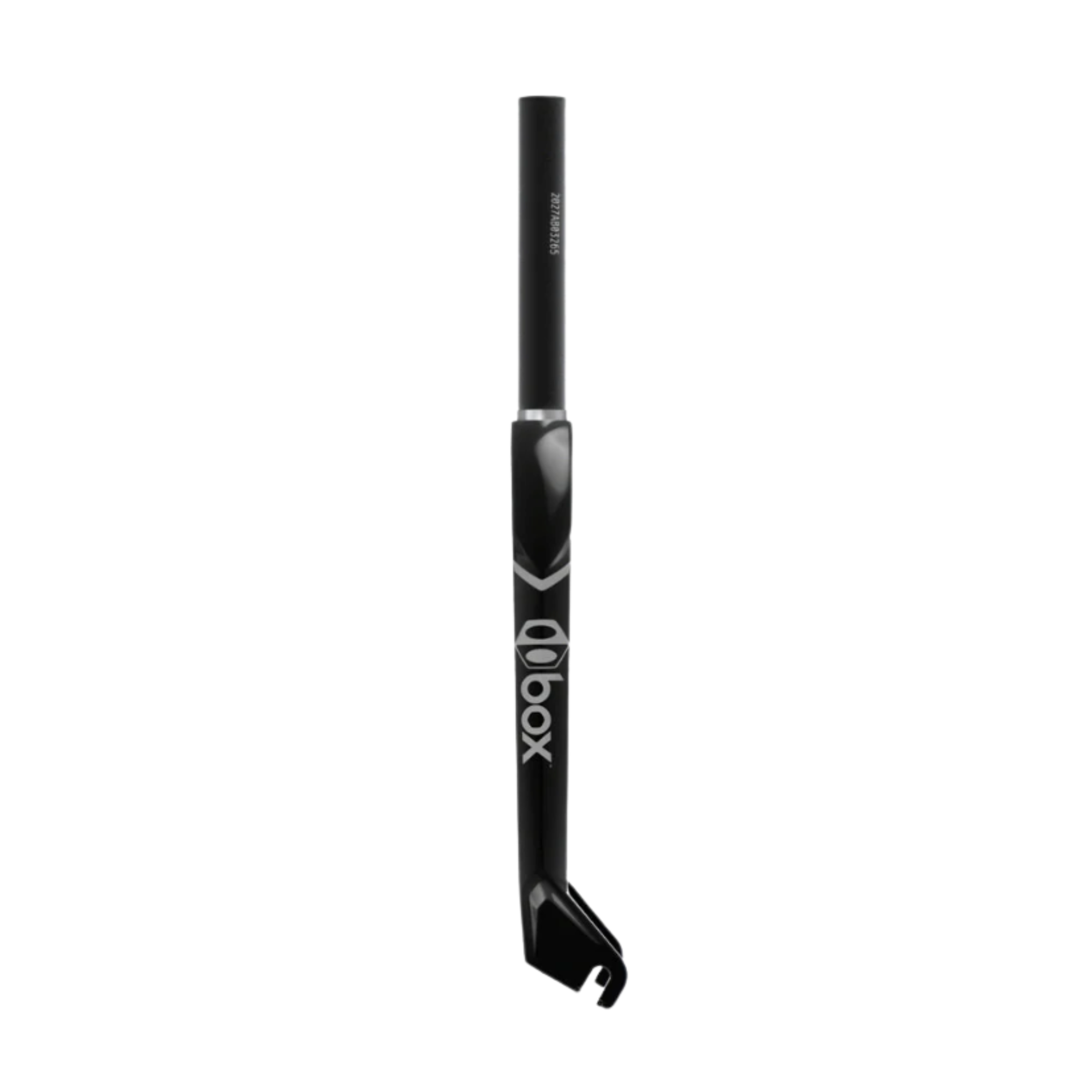

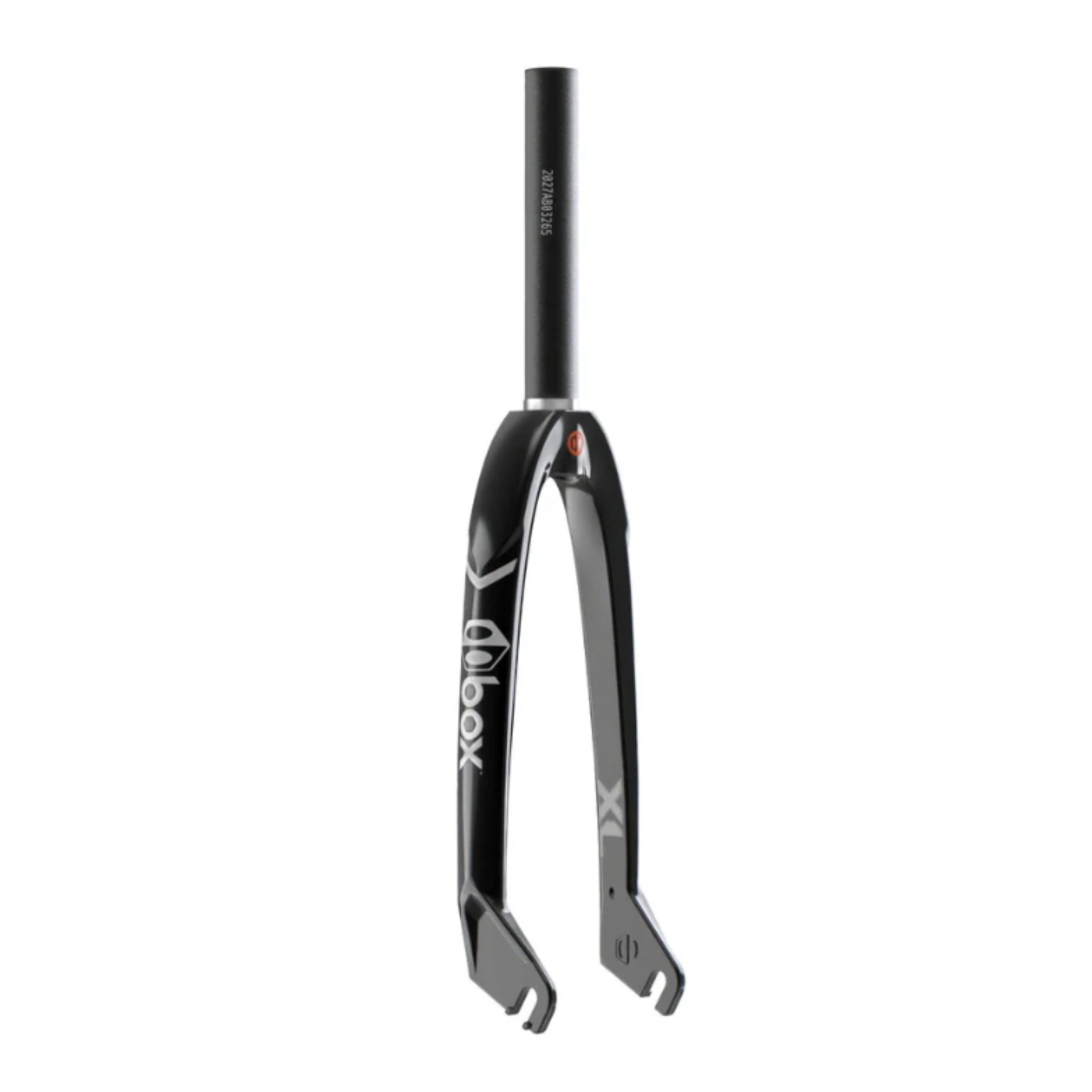

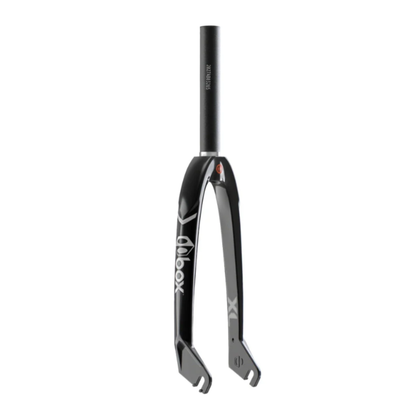

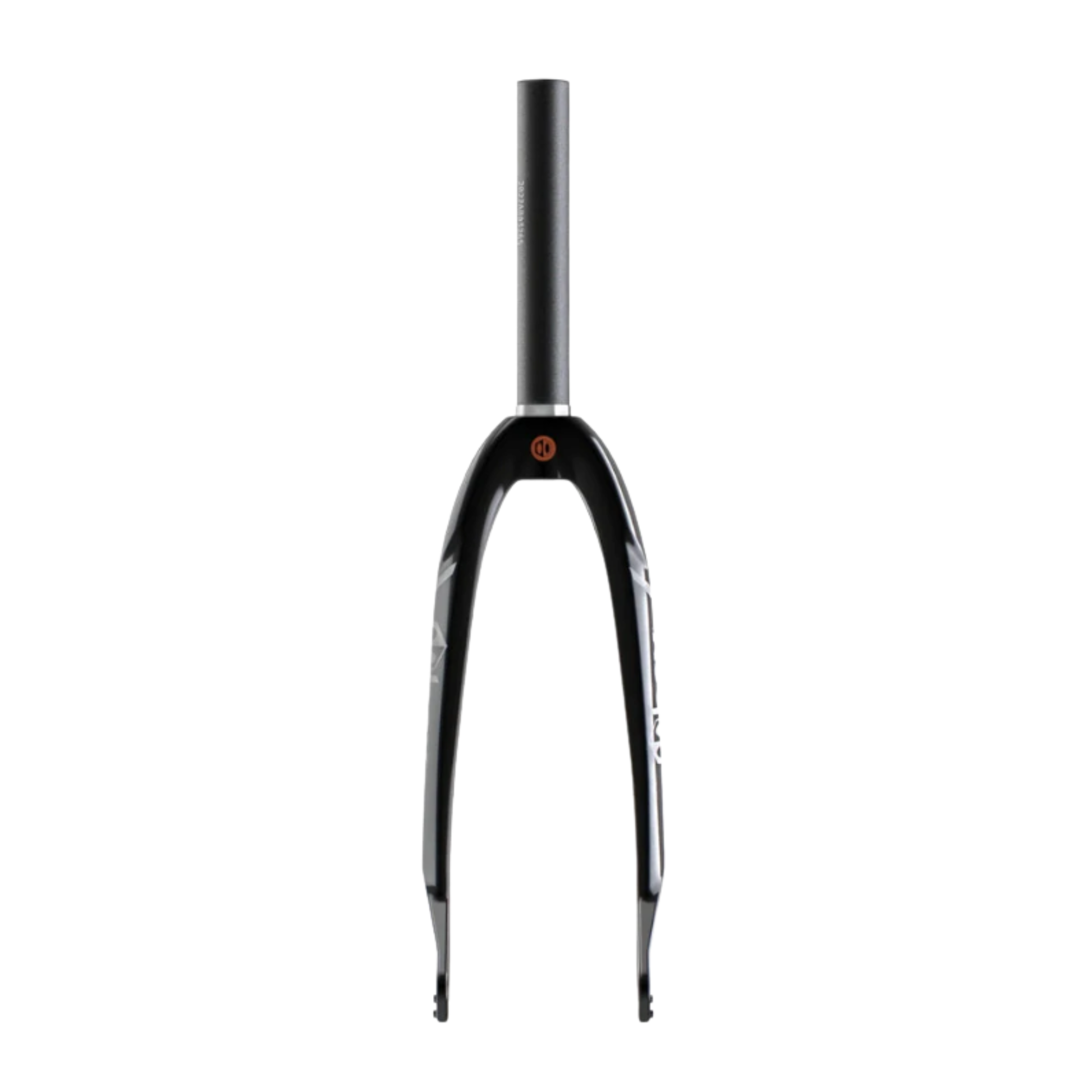

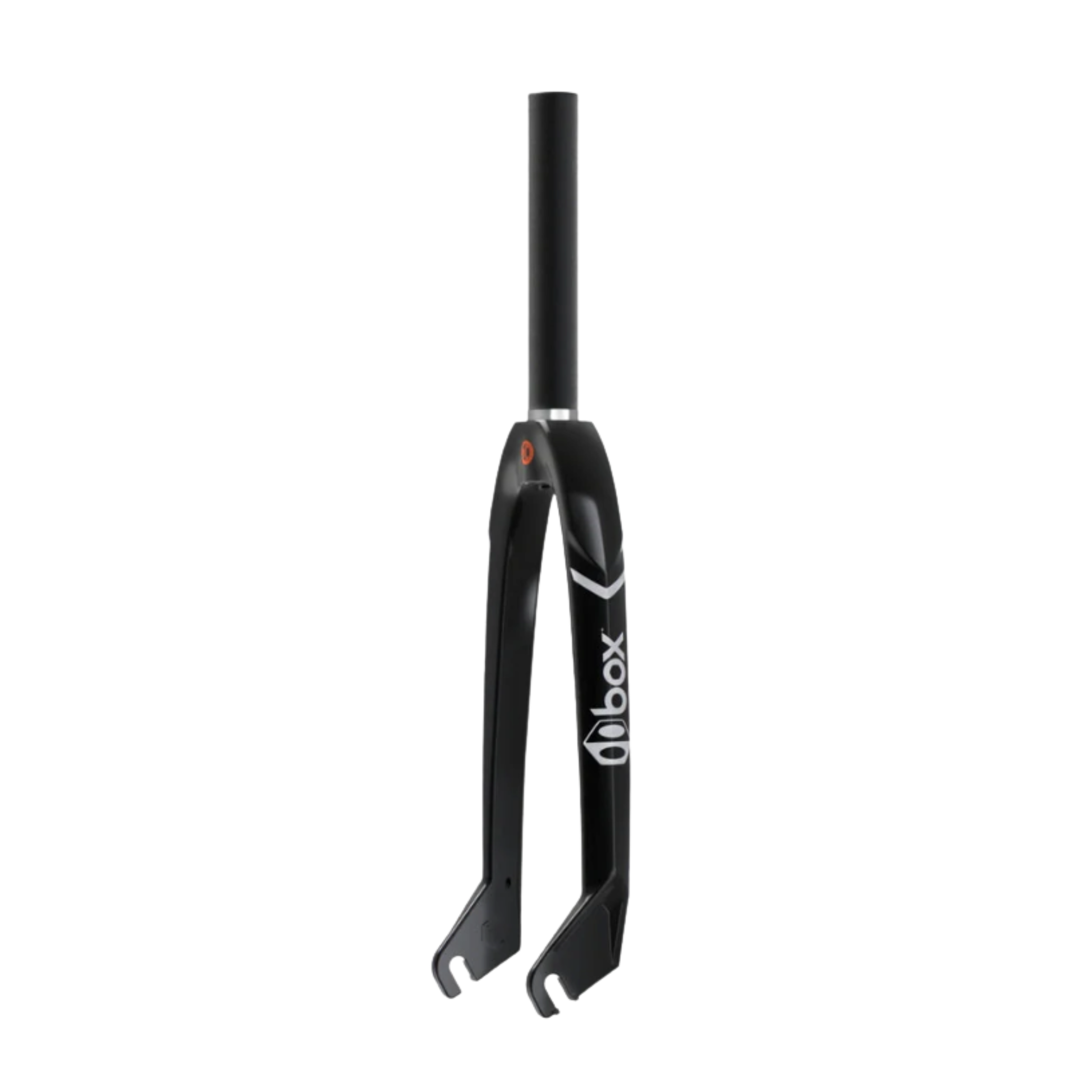

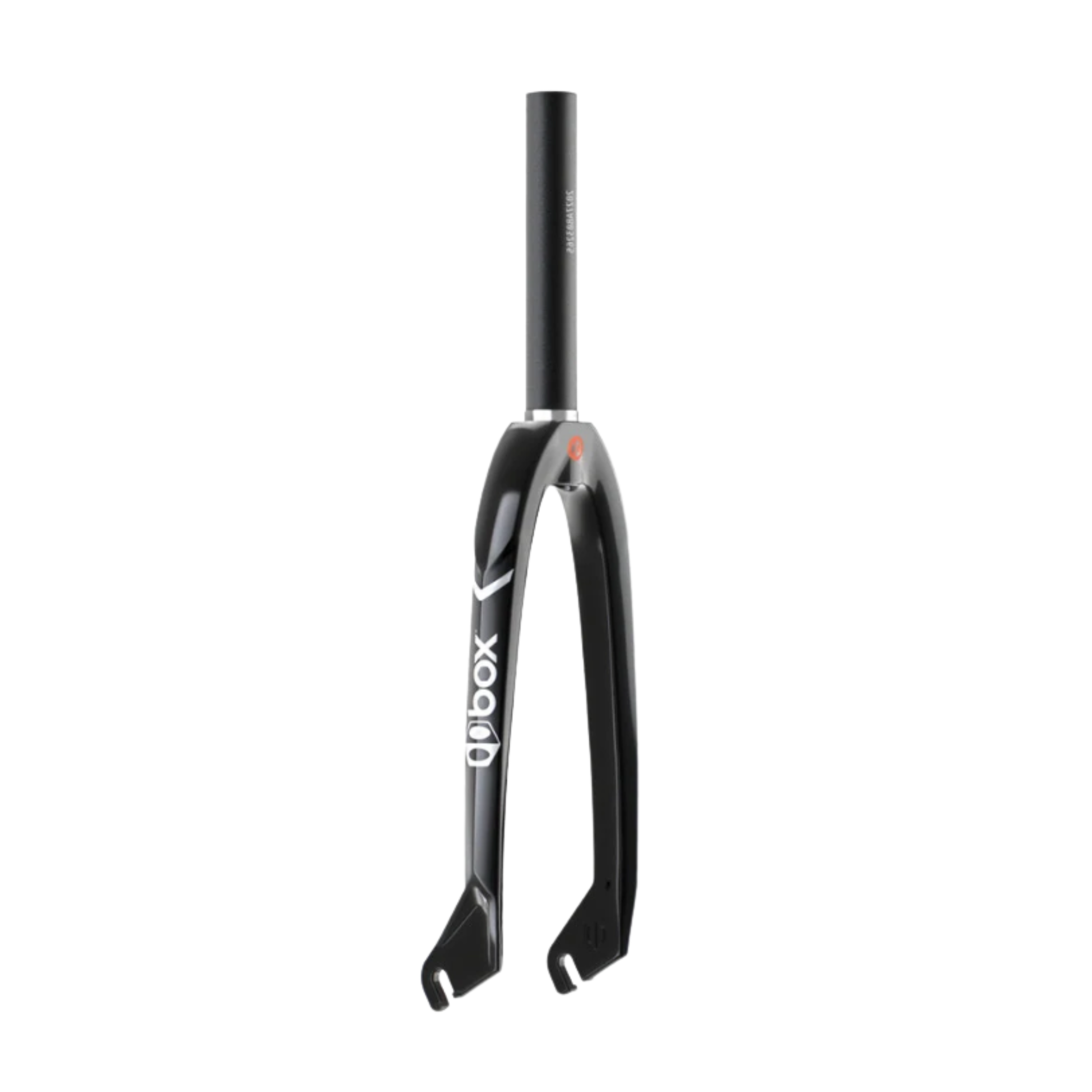

Box One XL Pro Lite Carbon Fork - 10mm

All Box One forks are engineered and crafted using Oversized Technology. These forks are the single most important component in the quest for bike control. Carbon has been moved from areas of low stress to areas that handle high load. Those muscular shoulders aren’t just for looks as they are integral to achieving superior steering stiffness. When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.

Key differences: This particular model fork is tailored for larger-sized racers and therefore includes a lightweight 1-1/8 inch 7000 series aluminum steerer tube and 10mm cold-forged dropouts.

7075-T6 Aluminum 1-⅛” Larger Diameter Steerer Tube to Accommodate Larger-Sized Racers

Designed for 10mm Axle Conventional Hubs

Internal Butterfly for Added Durability at Steerer Tube and Fork Crown Interface

Material:

• Legs: High Modulus Unidirectional Carbon Fiber

• Steerer: 7075-T6 Aluminum

• Butterfly & Dropouts: 6061-T6 Aluminum

Process:

• Legs: Vacuum Mold

• Steerer: Extruded & Butted

• Butterfly & Dropouts: Cold-Forged

Hardware: Stem Lock

Finish: Gloss Black/Matte Black with Water Decals

Compatibility/Size:

• Height: 20” / 24”

• Steerer: 1-1/8" Straight

• Offset: 32mm

• Axle:: 10mm

Weight

• 20": 560g / 19.75oz

• 24": 585g / 20.7oz

Please note: weight may vary by +/- 10% due to carbon manufacturing processes.

Weight Limit: 115kg (253 lbs) with limitations as per Category 2 of EN 16054:2012 Standard

Compatibility:

Box Two 1.1/8" Integrated Headset

Box One Carbon 45x45 1.1/8" Integrated Headset

Box Two Threadless Headset

Box Two Headset Spacers

Box One Front Load Stem

Box One Top Load Stem

Box Two Front Load Stem

Box Two Top Load Stem

Box One Delta Stem

Box One Center Clamp Stem

Box Two Center Clamp Stem
