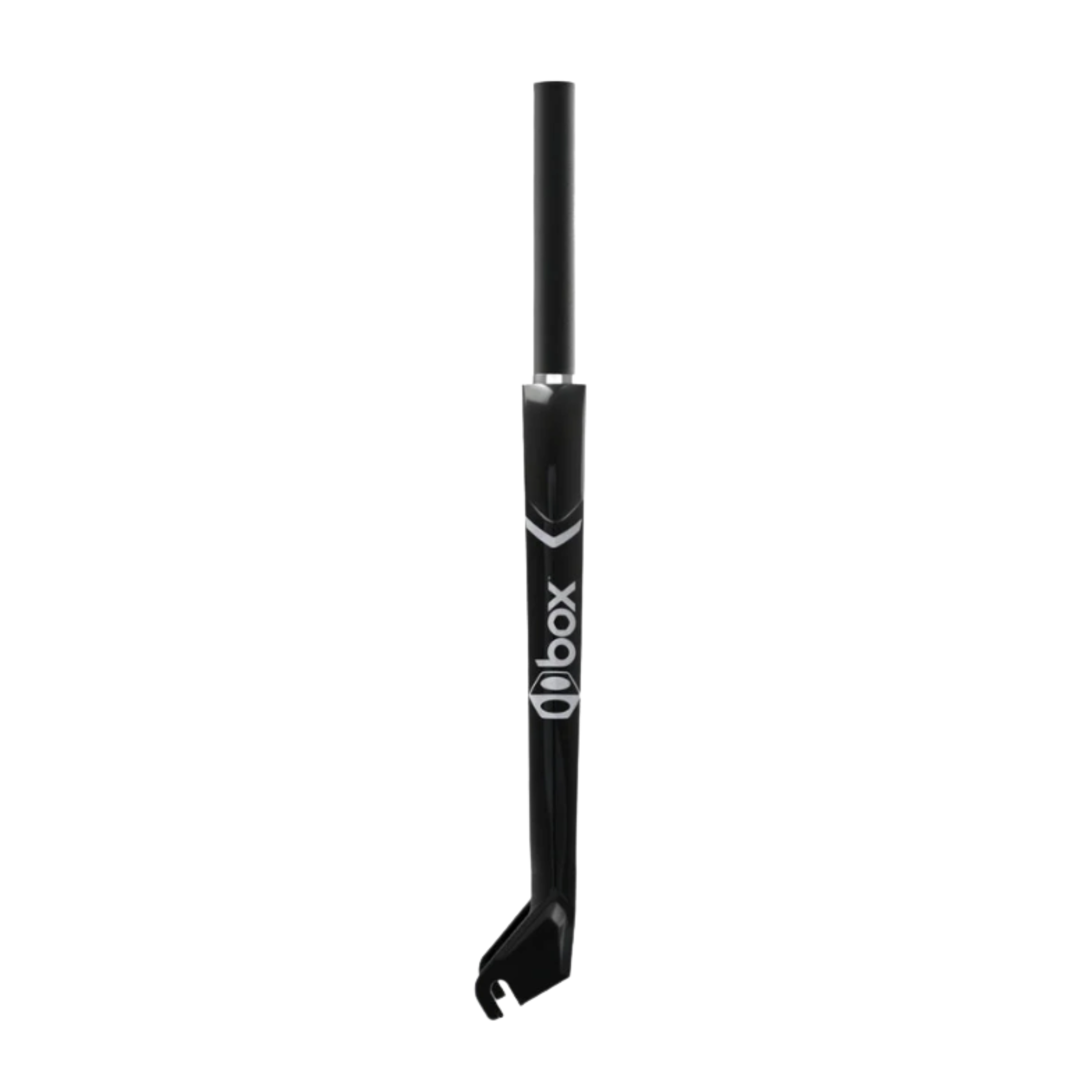

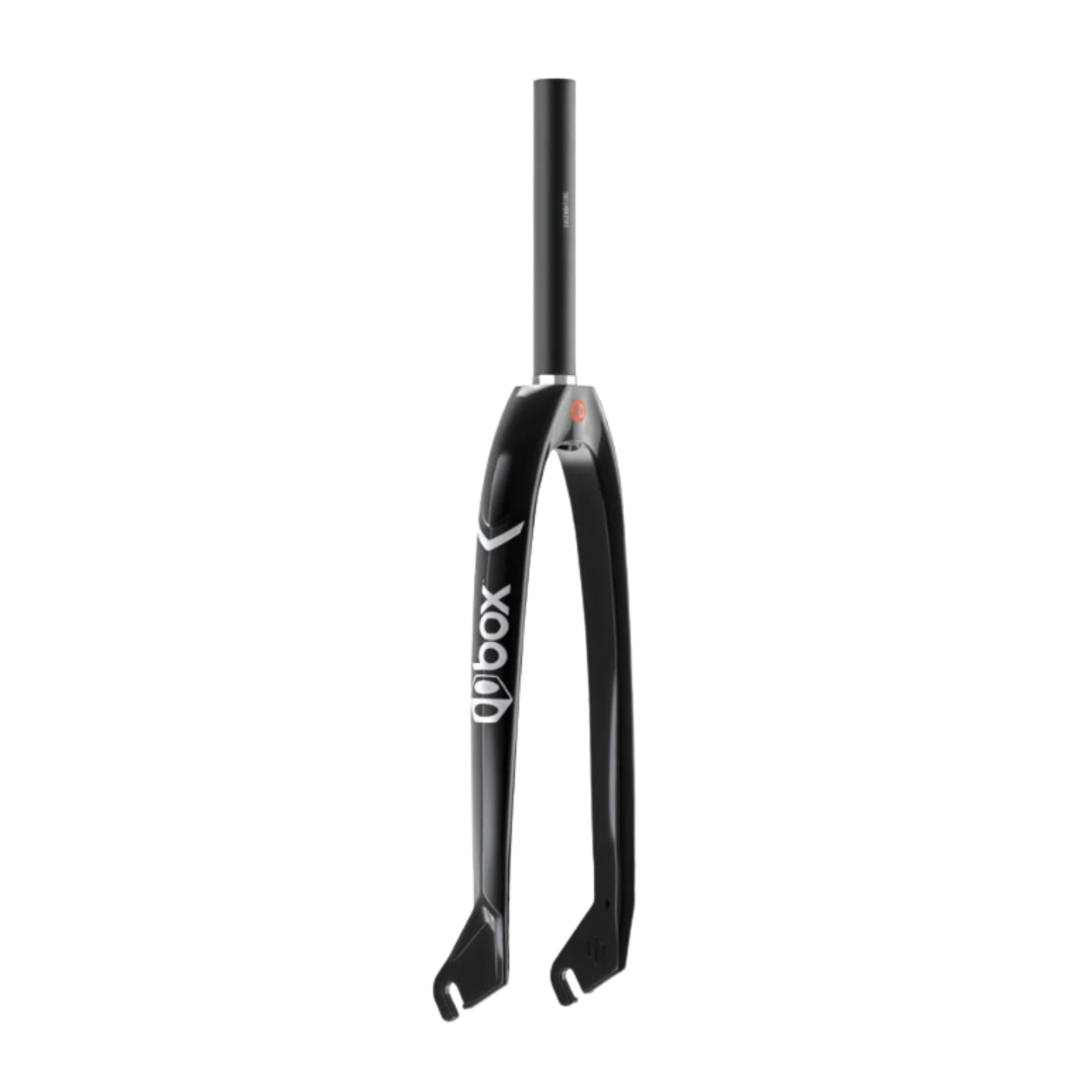

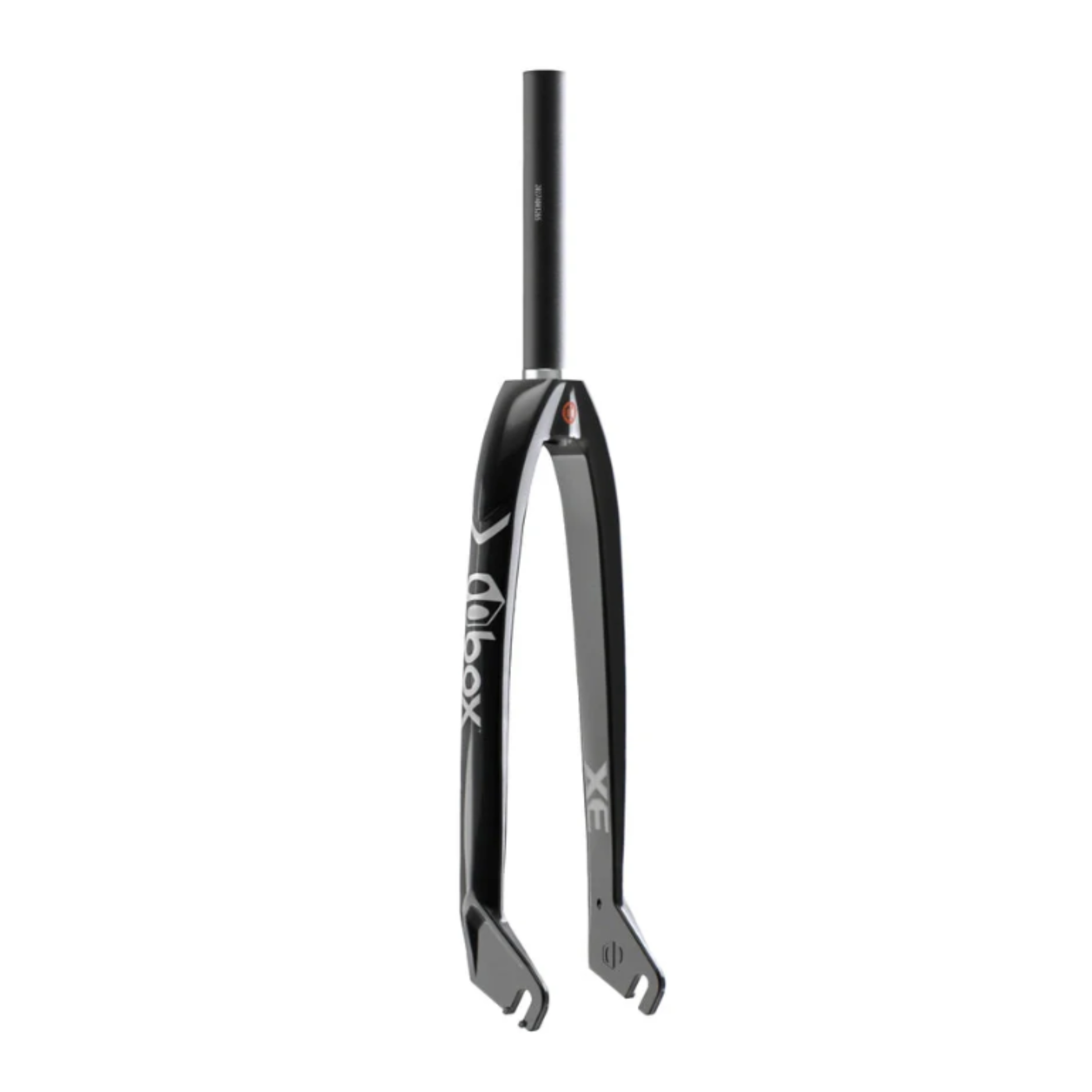

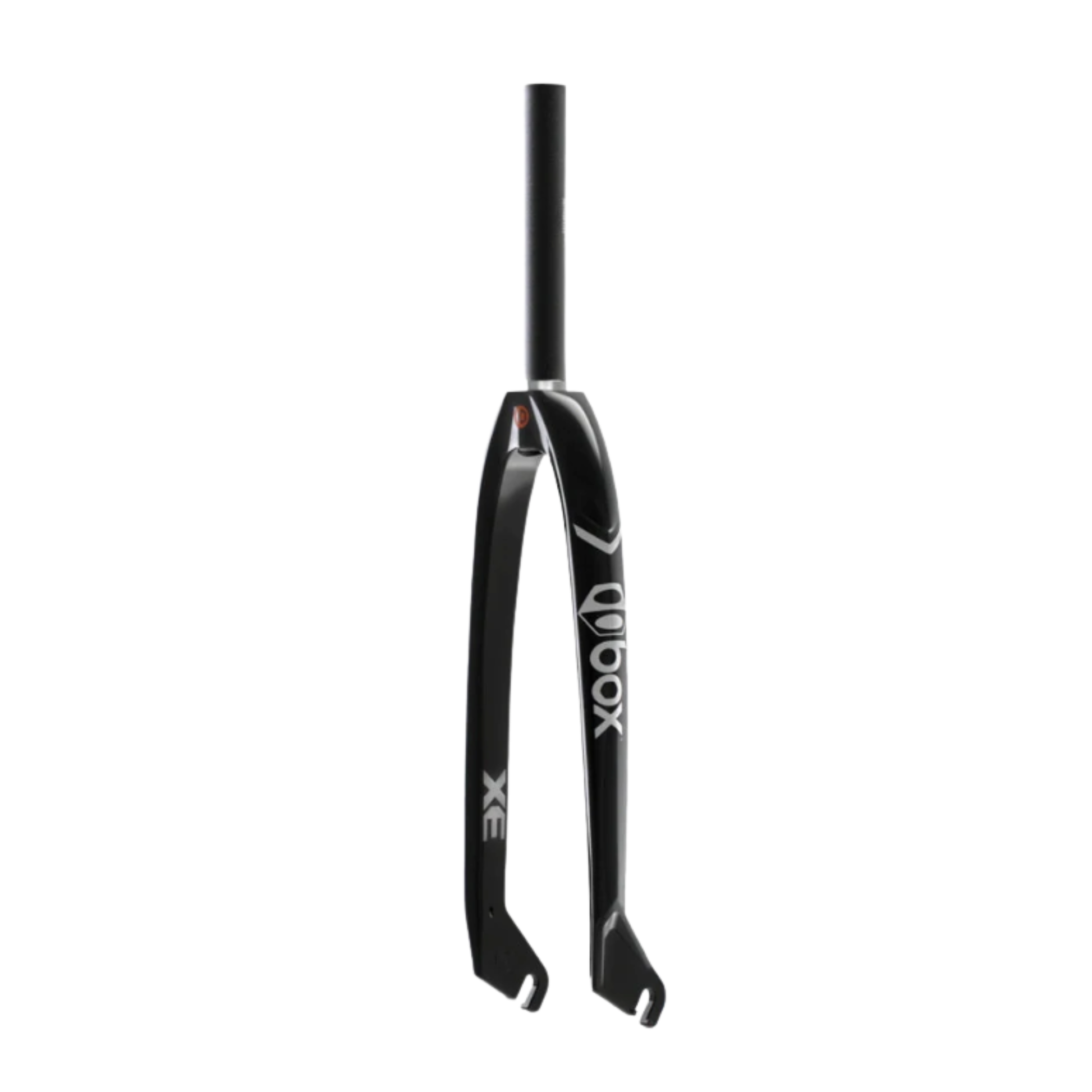

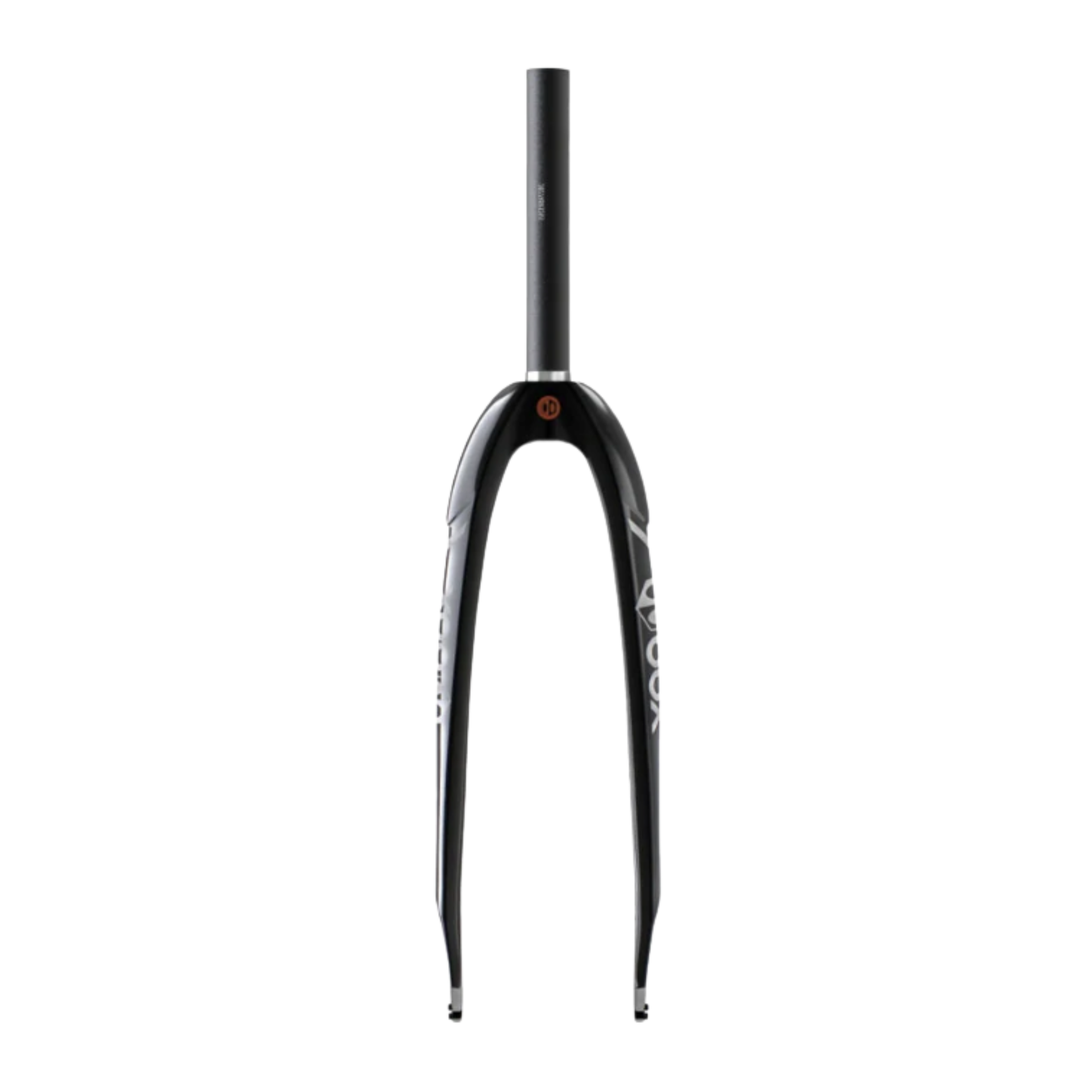

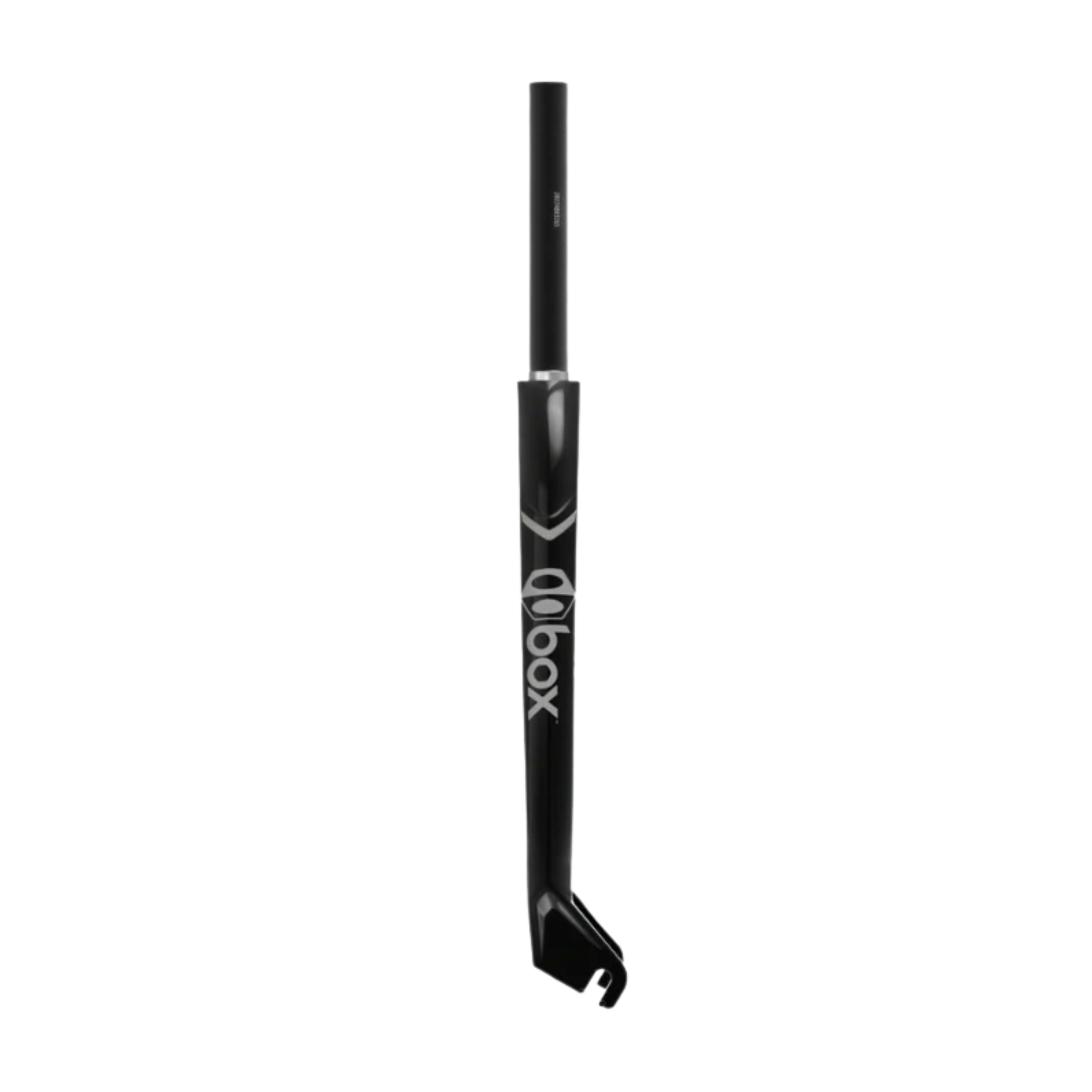

Box One XE Expert Carbon Fork - 10mm

All Box One forks are engineered and crafted using our Oversized Technology. These forks are the single most crucial component in the quest for bike control. We’ve moved carbon from areas of low stress to areas that handle high load. Those muscular shoulders aren’t just for looks, as they are integral to achieving superior steering stiffness. When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.

Key differences: This particular model fork is tailored for mid-sized racers and includes a lighter weight 1 inch 7000 series aluminum steerer tube and 10mm cold-forged dropouts.

7075-T6 Aluminum Standard 1” Steerer Tube to Accommodate Mid-Sized Racers

Designed for 10mm Axle Conventional Hubs

Internal Butterfly for Added Durability at Steerer Tube and Fork Crown Interface.

Material:

• Legs: High Modulus Unidirectional Carbon Fiber

• Steerer: 7075-T6 Aluminum

• Butterfly & Dropouts: 6061-T6 Aluminum

Process:

• Legs: Vacuum Mold

• Steerer: Extruded & Butted

• Butterfly & Dropouts: Cold-Forged

Hardware: Stem Lock

Finish: Gloss Black/Matte Black with Water Decals

Compatibility/Size:

• Height: 20” / 24”

• Steerer: 1" Straight

• Offset: 32mm

• Axle: 10mm

Weight

• 20": 480g/16.9oz

• 24": 490g/17.3oz

Please note: weight may vary by +/- 10% due to carbon manufacturing processes.

Weight Limit: 45 kg (99 lbs) or less with limitations as per Category 1 of EN 16054:2012 Standard

Compatibility:

Box One Stem Spacers

Box Two Stem Spacers

Box Two Threadless Headset

Box Two 1" Integrated Headset

Box Two 1" Integrated Conversion Headset

Box Two Headset Adapters

Box Two Top Load 1" Stem

Box Hex Lab 1" Stem

Box Two Center Clamp 1" Stem
