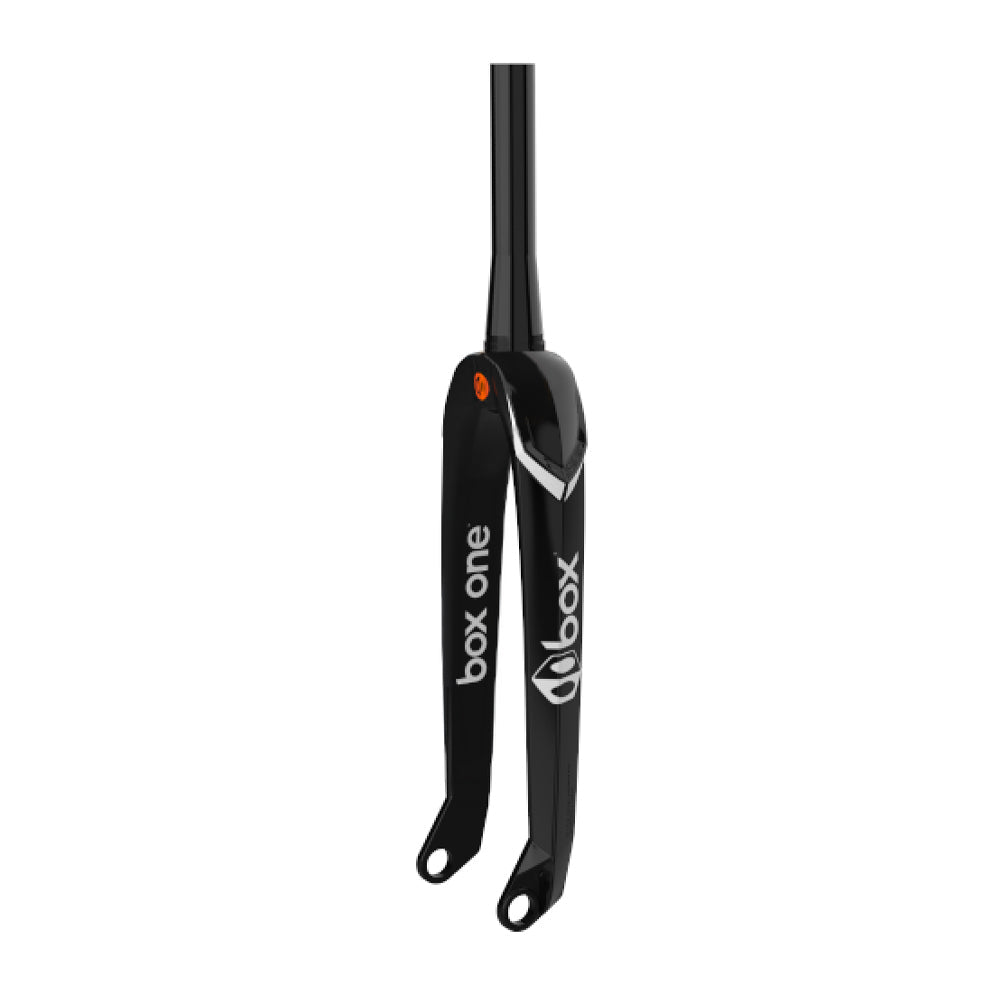

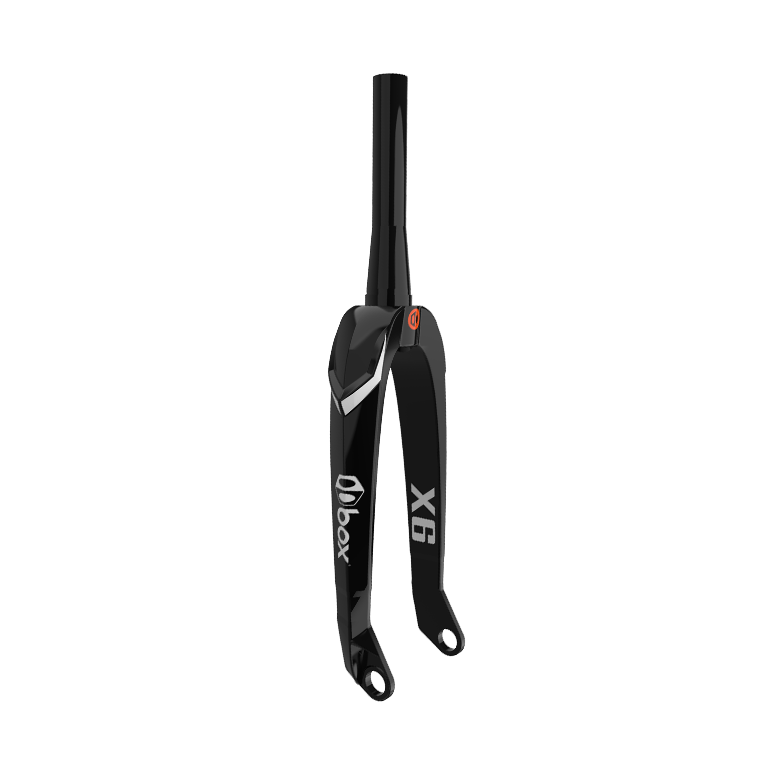

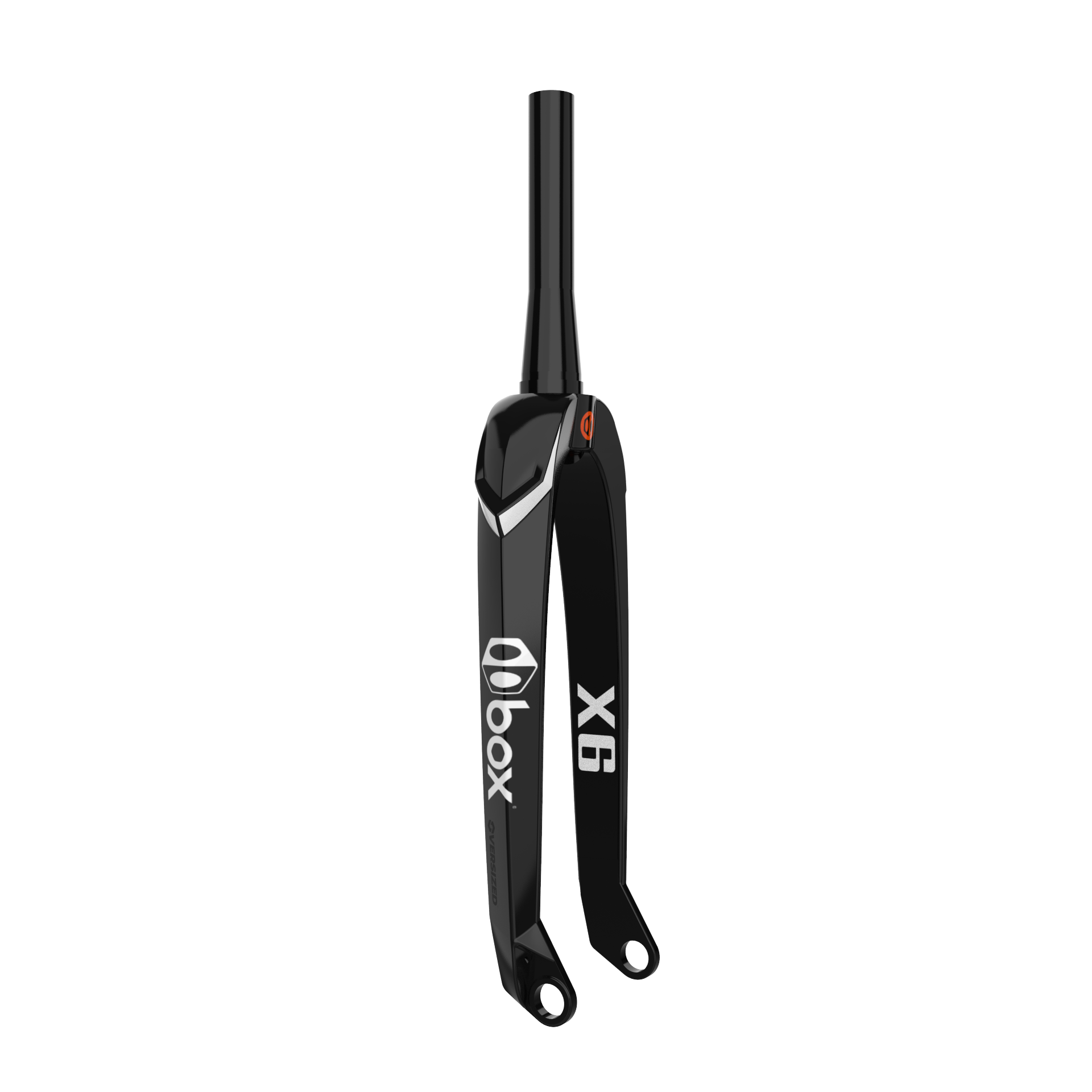

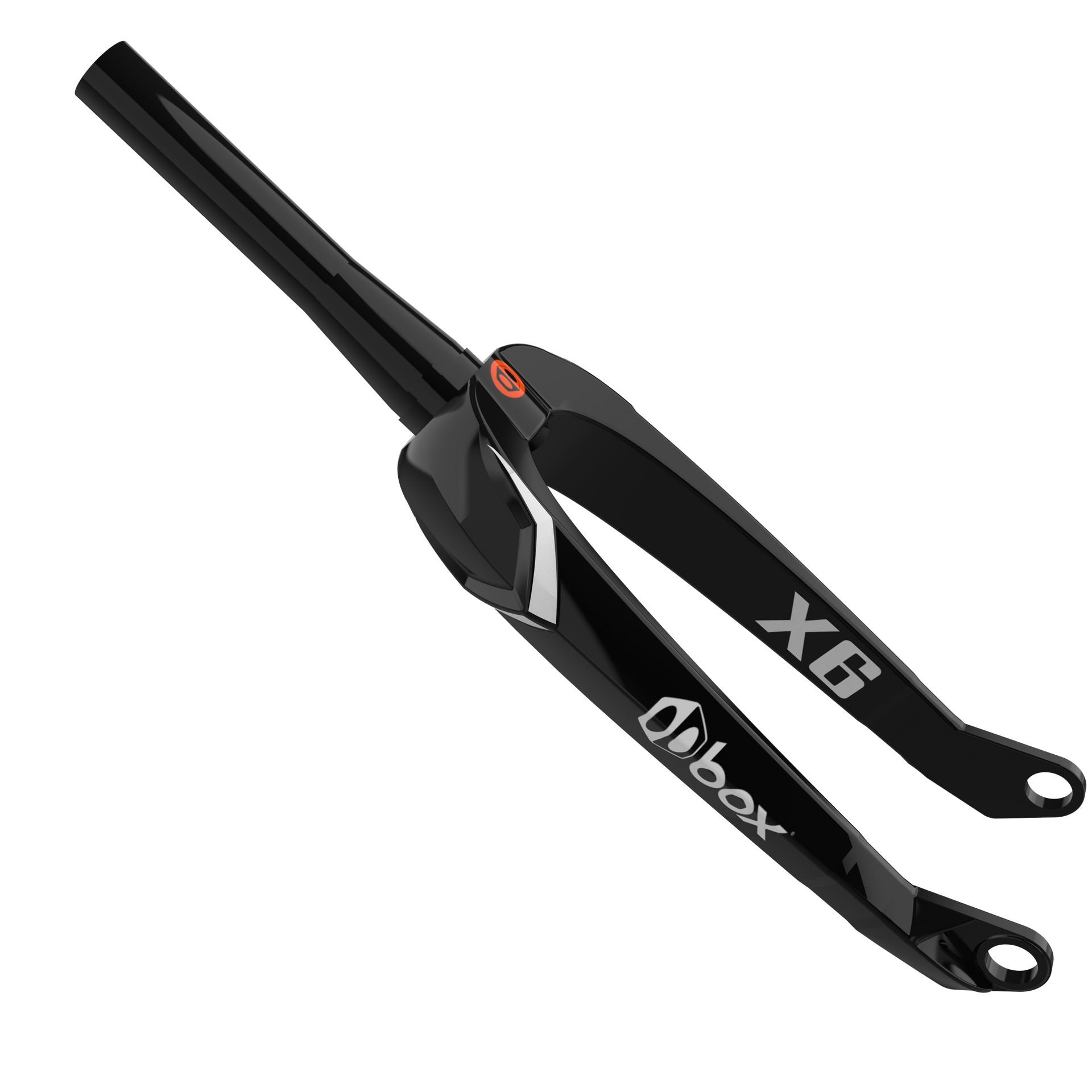

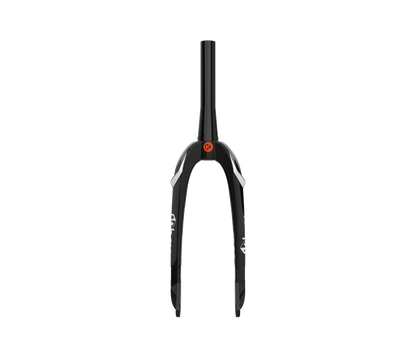

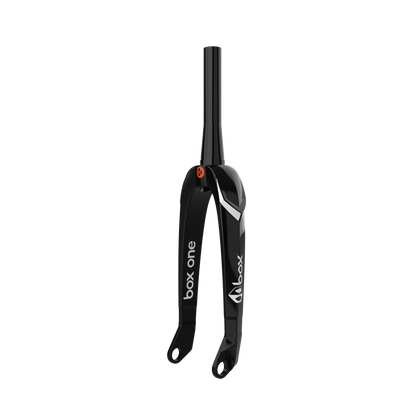

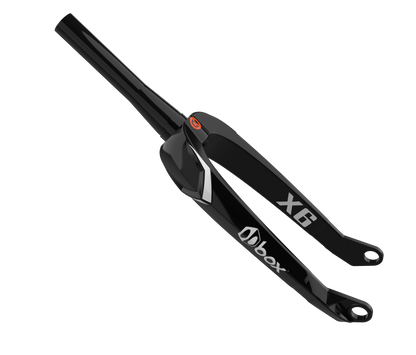

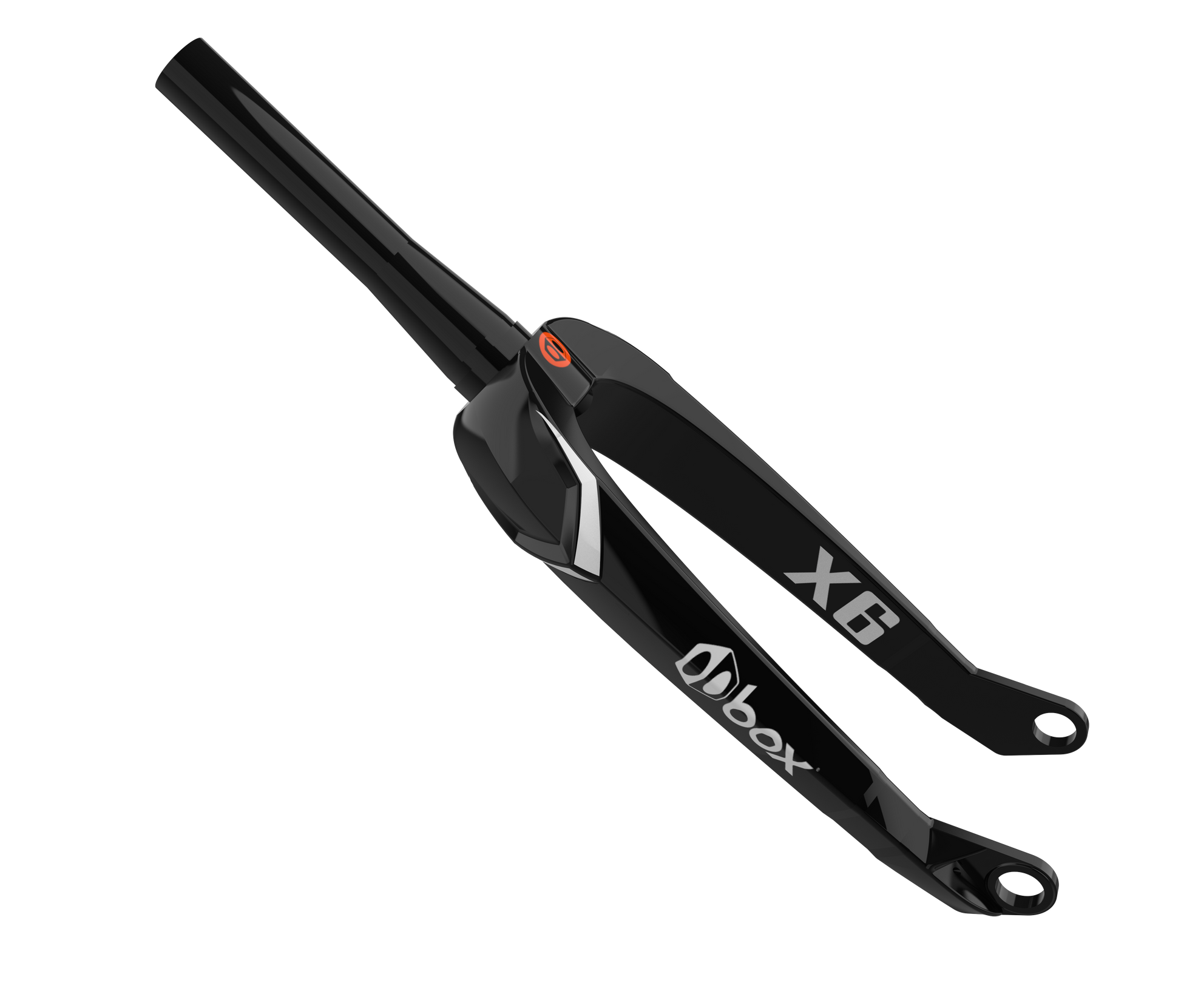

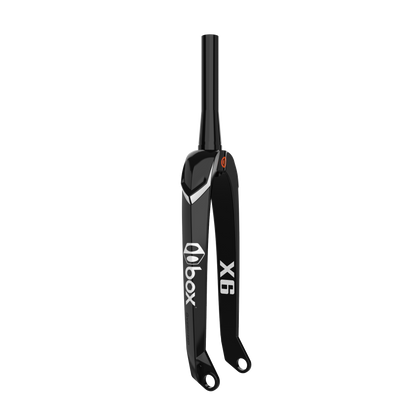

Box One Oversized X6 Pro Carbon Forks

Note: Ships in 1-2 business days. Delivery time depends on the shipping method chosen at checkout.

Built off the title-winning X5 platform, the Box One Oversized X6 Pro Carbon Forks feature race-developed Oversized Technology with a 1.5 to 1-1/8 inch alloy steerer tube. Designed with increased tire clearance and larger hips, they deliver enhanced stiffness and performance, while robust 20mm thru-axle cold-forged dropouts ensure maximum durability and stability. Carbon is moved from low-stress areas to high-load zones for superior steering stiffness, reduced latency, and heightened responsiveness.

Features:

• Alloy Tapered Steerer Tube to Reduce Deflection
• 20mm Dropouts to Increase Responsiveness
• Internal Butterfly for Added Durability at Steerer Tube and Fork Crown Interface

Specifications:

• Material: Legs: High Modulus Unidirectional Carbon Fiber; Steerer: 7075-T6 Aluminum; Butterfly & Dropouts: 6061-T6 Aluminum
• Process: Legs: Vacuum Mold; Steerer: Extruded & CNC; Butterfly & Dropouts: Cold-Forged
• Hardware: Stem Lock
• Finish: Gloss Black with White Decals
• Compatibility/Size: Height: 20" / 24"; Steerer: 1-1/8" tapers to 1.5"; Offset: 32mm; Dropouts: 20mm
• Height: Axle to Crown: 20" 303mm / 24" 354mm
• Weight: 20": 625g/22.1oz; 24": 645g/22.7oz
• Please note: weight may vary by +/- 5% due to carbon manufacturing processes.
• Weight Limit: 115kg (253 lbs)
