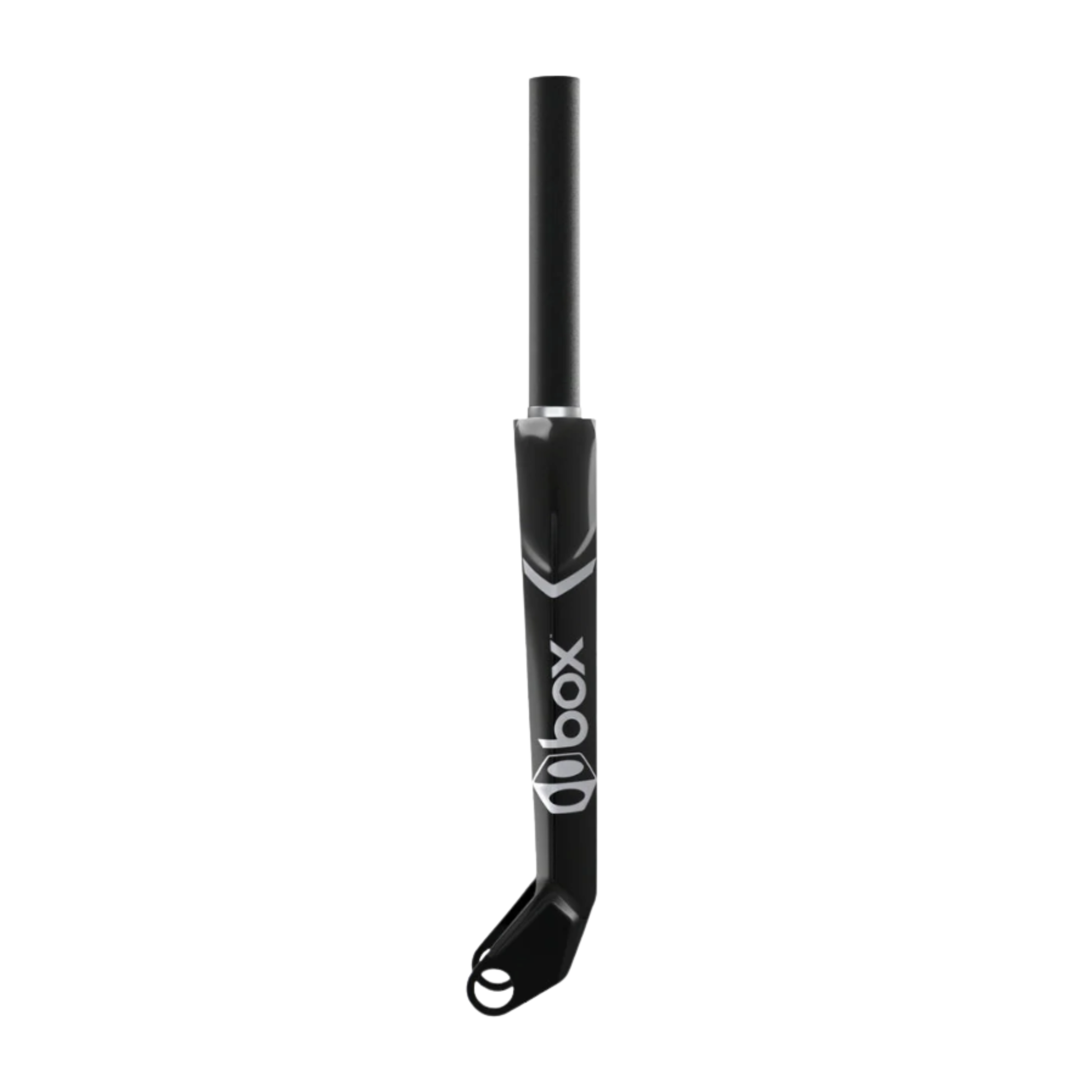

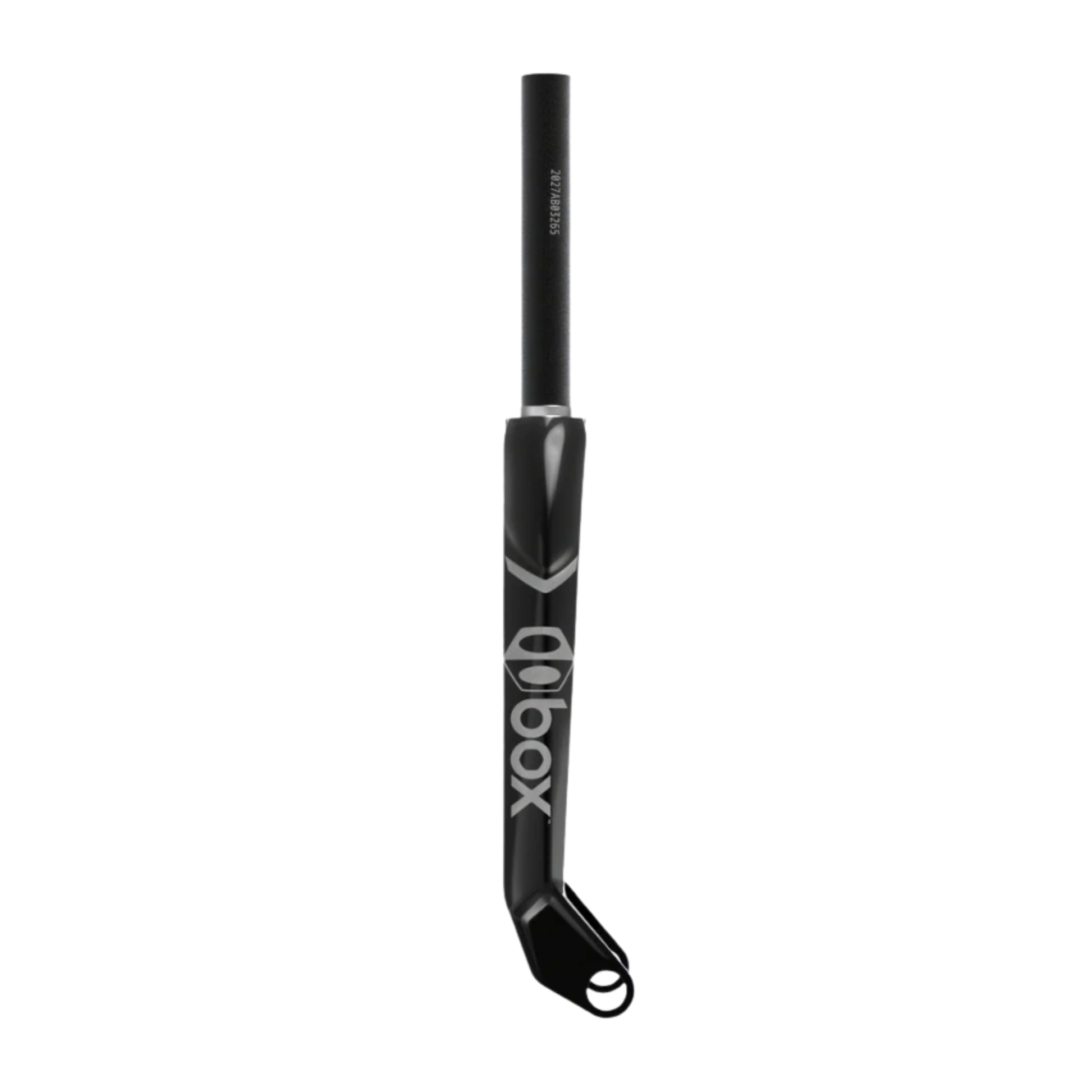

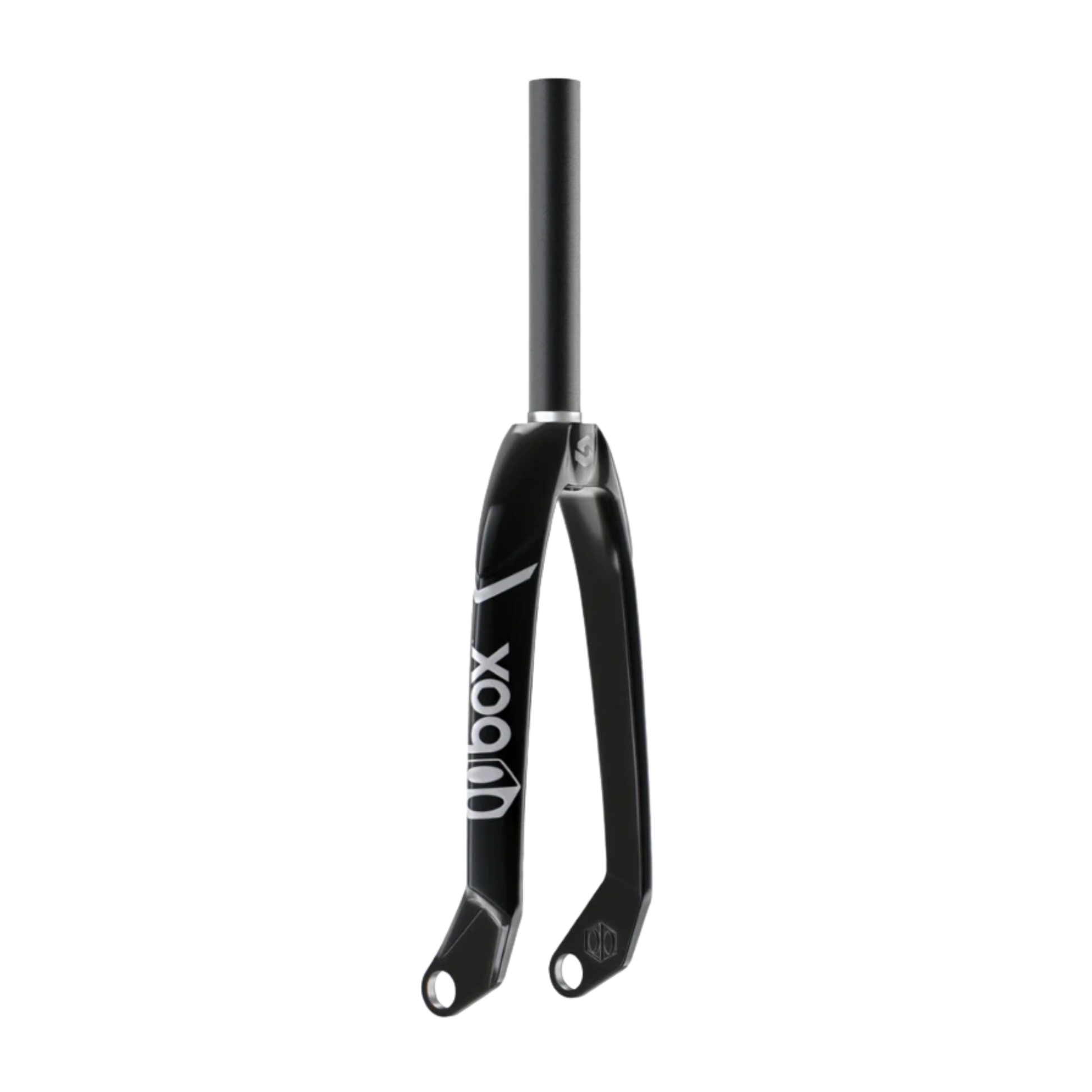

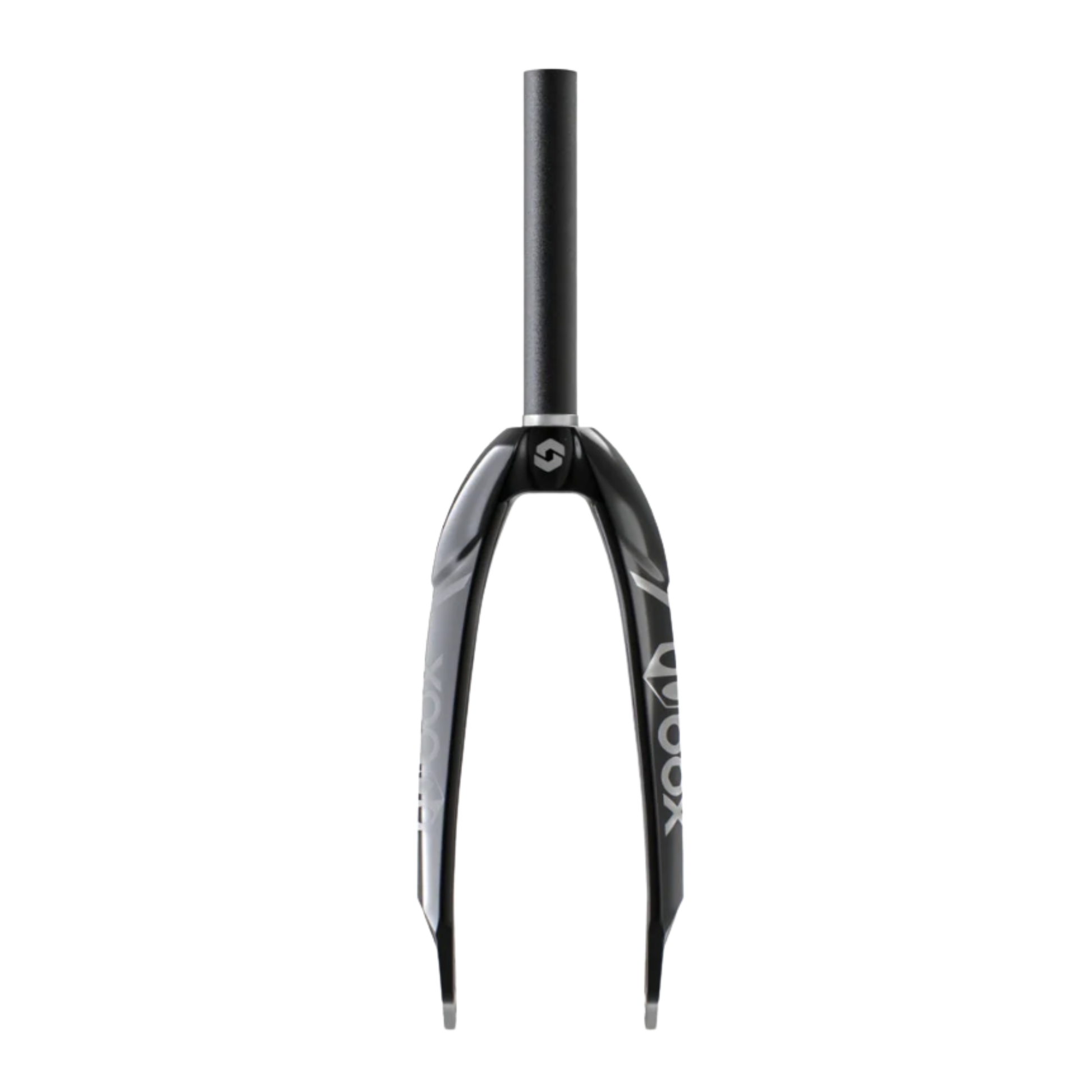

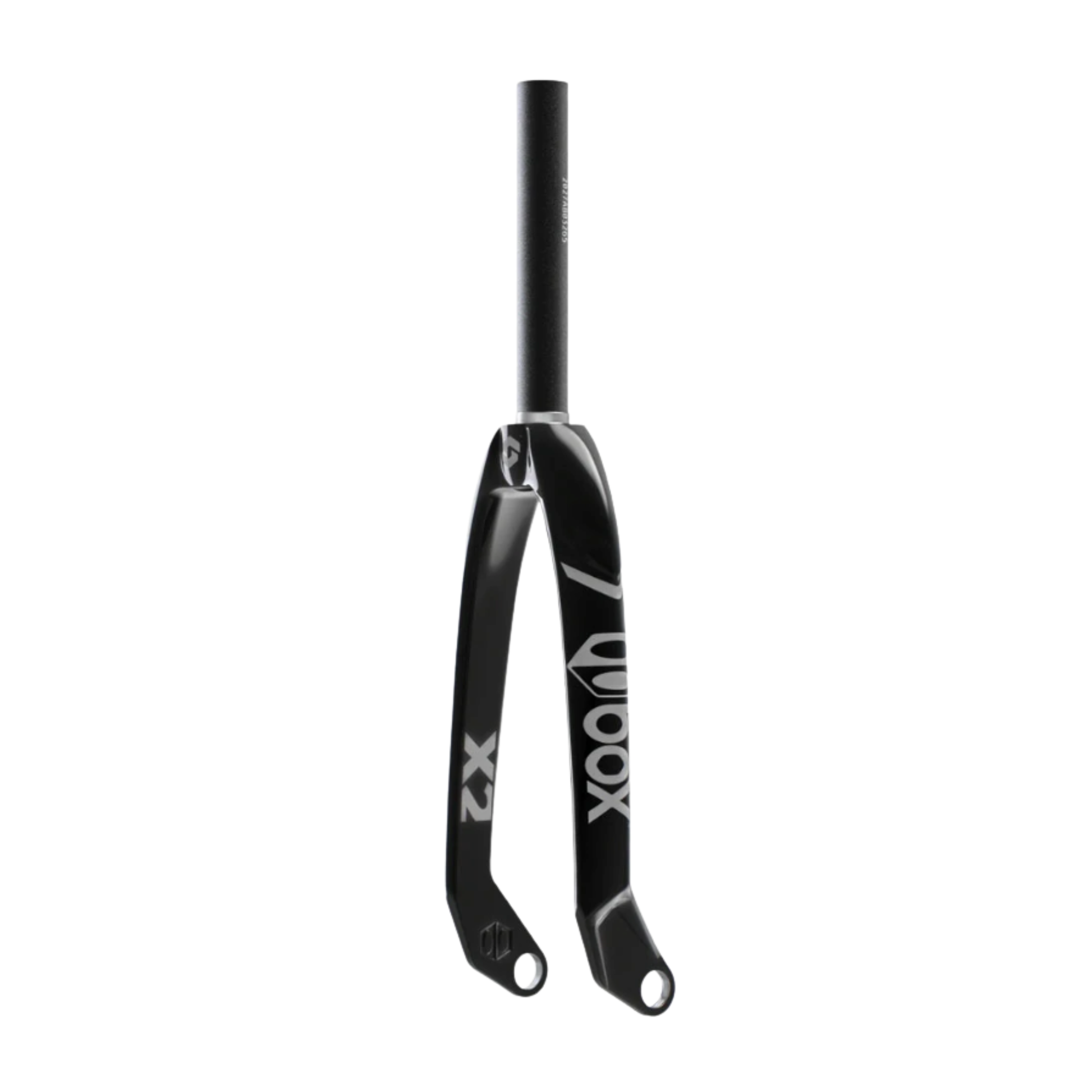

Box One Oversized X2 Pro Carbon Fork - 20mm

All Box One forks are engineered and crafted using Oversized Technology. These forks are the single most important component in the quest for bike control. Carbon has been moved from areas of low stress to areas that handle high load. Those muscular shoulders aren’t just for looks as they are integral to achieving superior steering stiffness. When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.

Key differences: This particular model fork is tailored for larger-sized racers and also takes our application of Oversized Technology one step further as it includes a tougher 1-1/8 inch chromoly steerer tube and stiffer 20mm through-axle cold-forged dropouts.

Oversized Technology™

• Chromoly Steel Steerer Tube to Accommodate Larger-Sized Racers

• 20mm Thru Axle dropouts to Increase Responsiveness

• Internal Butterfly for Added Durability at Steerer Tube and Fork Crown Interface

Material:

• Legs: High Modulus Unidirectional Carbon Fiber

• Steerer: Chromoly Steel

• Butterfly & Dropouts: 6061-T6 Aluminum

Process:

• Legs: Vacuum Mold

• Steerer: Extruded & Butted

• Butterfly & Dropouts: Cold-Forged

Hardware: Stem Lock & Fork Adapters

Finish: Gloss Black/Matte Black with Water Decals

Compatibility/Size:

• Height: 20” / 24”

• Steerer: 1-1/8" Straight

• Offset: 32mm

• Through-Axle: 20mm

Weight:

• 20”: 657 g

• 24”: 703 g

Please note: weight may vary by +/- 10% due to carbon manufacturing processes.

Weight Limit: 115kg (253 lbs) with limitations as per Category 2 of EN 16054:2012 Standard

Compatability:

Box Two 1-1/8" Integrated Headset

Box One Carbon 45x45 1.1/8" Integrated Headset

Box Two Threadless Headset

Box Two Headset Spacers

Box One Front Load Stem

Box One Top Load Stem

Box Two Front Load Stem

Box Two Top Load Stem

Box One Delta Stem

Box One Center Clamp Stem

Box Two Center Clamp Stem

Box Two 20mm Front Hubs
