Elevn Post Mount Adapter Kit 120mm - 10mm Axle W/O Cover Bolts

Note: Ships in 4-5 business days. Delivery time depends on the shipping method chosen at checkout.

The post mount adapter for Chase RSP frames, and the more widely compatible of Elevn's two options: it fits RSP 5.0 and 4.0, Element 2020 to 2025, and Edge 2022 to 2025.

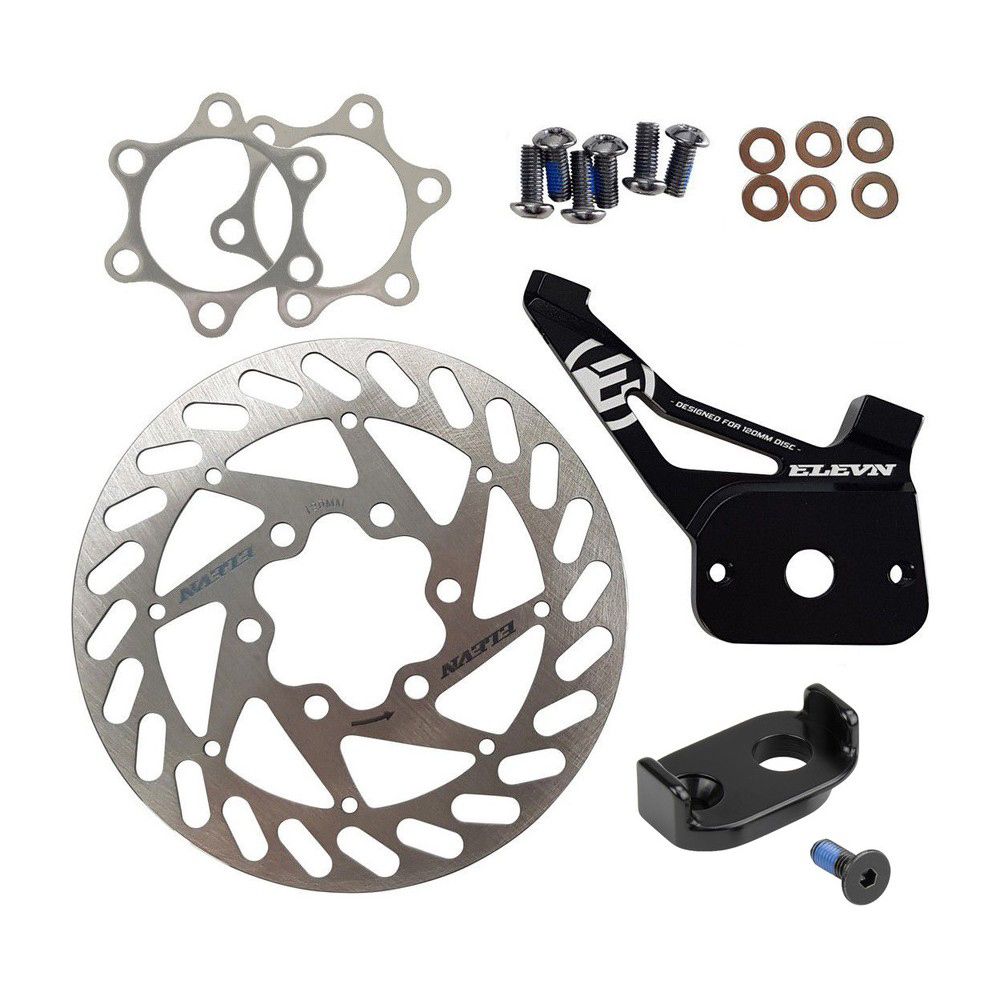

It is a complete kit rather than just a bracket. The full CNC alloy adaptor handles the caliper mounting, and on the opposite side you get a chain tensioner with an anti-rotation system, which is the part that stops the adapter creeping under braking load. Elevn include six disc screws and washers, two disc spacers at 1 mm and 0.5 mm, and two disc rotor spacers for hubs that need them, so you can set the rotor up correctly whatever rear hub you are running. Works with Center Lock hubs using a Center Lock adaptor. This version comes without cover bolts.

Features:

• Designed to be fitted on Chase RSP frames
• Compatibility: RSP 5.0 and 4.0, Element 2020-2025, Edge 2022-2025
• Full CNC alloy adaptor for the 120 mm disc brake mount only
• 10 mm rear axle set up with pin bolt security
• 120 mm disc brake rotor fastening system, ISO 6 screws with air vents
• Chain tensioner with anti-rotation system
• 6 disc screws and washers
• 2 disc spacers, 1 mm and 0.5 mm thickness
• 2 disc rotor spacers, needed depending on the type of rear disc-ready hub used
• Works on Center Lock hubs with a Center Lock adaptor
• Sold without hydraulic braking system
• May fit other brands of frame, but designed for Chase frames
